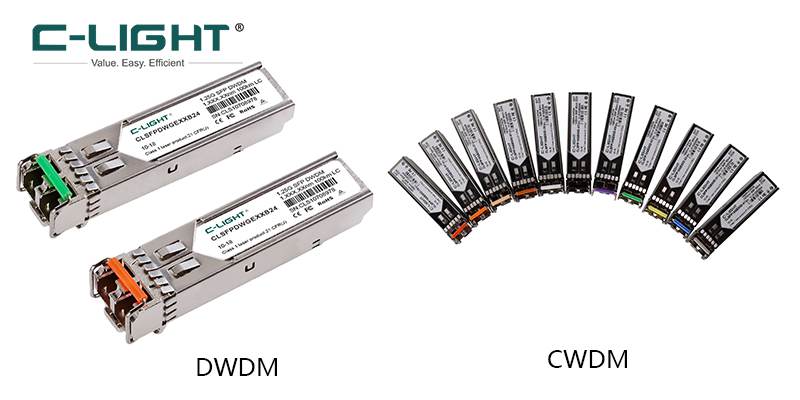

CWDM vs DWDM

I. Technical Background

In fiber optic communication systems, as data traffic continues to surge, maximizing bandwidth on limited fiber resources has become a core challenge for network architects. Wavelength Division Multiplexing (WDM) technology effectively increases fiber bandwidth utilization by simultaneously transmitting multiple optical signals of different wavelengths over a single fiber. CWDM and DWDM are two mainstream solutions developed based on WDM technology. They differ significantly in channel spacing, transmission capacity, application scenarios, and other aspects.

II. Core Parameter Comparison: CWDM vs. DWDM

CWDM channel spacing is approximately 100 times wider than DWDM. This fundamental difference determines the distinct positioning of the two technologies in terms of cost, performance, and applicable scenarios.

III. In-Depth Technical Analysis

3.1 Channel Spacing and Multiplexing Quantity

CWDM utilizes a wide 20nm channel spacing, allowing up to 18 wavelengths within the 1270nm to 1610nm range (though typically 8 bands from 1470~1610nm are used). In contrast, DWDM employs extremely narrow channel spacing (0.8nm or 0.4nm, corresponding to 100GHz/50GHz grid), enabling the multiplexing of 40, 80, 96, or even 160 channels within the C-band and L-band. The channel density is significantly higher than CWDM.

3.2 Transmission Capacity and Distance

CWDM is typically used for applications below 10G with relatively lower capacity. Current pluggable CWDM optical modules can reach up to 100Gbps, with transmission distances generally limited to within 80km. Due to the wide channel spacing, CWDM cannot utilize traditional optical amplifiers (like EDFA), thus limiting transmission reach. DWDM supports high-speed protocols (100G/200G/400G per wavelength) and enables ultra-long-haul transmission over hundreds or thousands of kilometers using EDFA amplifiers, making it the core technology for backbone networks and Data Center Interconnect (DCI).

3.3 Laser Technology

CWDM systems use uncooled lasers relying on electronic tuning, resulting in lower power consumption and lower equipment costs. DWDM systems utilize cooled lasers with precise thermal tuning to lock wavelengths, ensuring higher system performance, security, and longer operational life, albeit with higher power consumption.

IV. Cost Considerations and Selection Criteria

The primary advantage of CWDM is lower cost. The core components—filters and lasers—are significantly less expensive than those in DWDM systems. This makes CWDM highly advantageous for short-distance, cost-sensitive applications. While the price gap between CWDM and DWDM components has narrowed recently with technological advancements, CWDM still maintains a high cost-performance ratio in large-scale deployments.

Key Factors for Selection:

• CWDM Applicable Scenarios: 5G Fronthaul networks, campus interconnects, metro network aggregation layers, FTTH access networks, temporary link setups, and other short-distance, cost-sensitive requirements.

• DWDM Applicable Scenarios: Cross-provincial backbone networks, large-scale Data Center Interconnect (DCI), long-distance fiber transmission, and high-capacity secure applications.

In simple terms: CWDM uses "wide lanes" for short distances and low cost; DWDM uses "dense lanes" for long distances and high capacity.

V. C-LIGHT CWDM/DWDM Product Solutions Overview

Shenzhen C-LIGHT Networks Communication Co., Ltd., established in 2011, is a high-tech company specializing in R&D and manufacturing of optical modules. Its product portfolio covers eight categories, including 800G, 400G, 200G, 100G, 50G, 25G, and 10G, totaling over a thousand optical module solutions. C-LIGHT offers a complete product matrix in both CWDM and DWDM fields.

5.1 CWDM Product Line

C-LIGHT's self-developed 100G/40G/25G CWDM SFP28/QSFP+ optical modules support transmission distances of 10km and 40km. These products feature CDR functionality and high-temperature operation capability up to 85°C, meeting various network requirements such as 5G fronthaul, access network uplinks, and metro networks.

Main CWDM Optical Module Models:

Additionally, C-LIGHT offers the 25G CWDM SFP28 10km optical module, a high-performance, industrial-temperature-range, cost-effective transmission solution designed for 25G Ethernet and Fibre Channel applications.

5.2 DWDM Product Line

C-LIGHT's DWDM optical modules cover a wide range of rates, from 400G to 100G, 25G, 10G, 2.5G, and 1G, all operating within the C-BAND 100GHz/50GHz grid, enabling shared passive WDM optical networks.

Core DWDM Optical Module Products:
