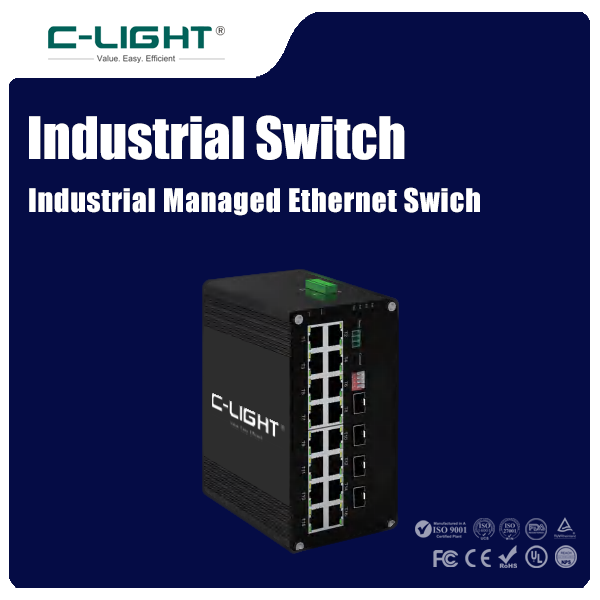

Industrial Managed Switch for Reliable Industrial Ethernet Network Management
| Industrial Managed Switch(8xRJ45 + 2/4/6 SFP port) | |||
| Model | CL-IMC208SGP-SFP | CL-IMC208MP | CL-IMC408MP |
| Product Image |
|
|
|
| SPEC | 8xRJ45 + 2x100/1000Base-X SFP; 48~57VDC, Redundant Power (4-pin Terminal Block); 5W Max, Max<240w; 95x63x46mm; 0.3Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8xRJ45 + 2x1000Base-X SFP; 48~57VDC, Redundant Power (6-pin Terminal Block); 8W Max, Max<240w; 150x115x50mm; 0.55Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8xRJ45 + 4x1000Base-X SFP; 48~57VDC, Redundant Power (6-pin Terminal Block); 8W Max, Max<240w; 150x115x50mm; 0.55Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Model | CL-IMC608MP | CL-MC2408MP | |
| Product Image |  |
| |
| SPEC | 8xRJ45 + 6x1000Base-X SFP; 48~57VDC, Redundant Power (6-pin Terminal Block); 8W Max, Max<240w; 150x115x50mm; 0.55Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8xRJ45 +4x1000Base-X SFP + 2x10G Base-SR/LR SFP+; 48~57VDC, Redundant Power (6-pin Terminal Block); 8W Max, Max<240w; 150x115x50mm; 0.55Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | |
| Industrial Managed Switch(16xRJ45 + 0/2/4/8 SFP port) | |||
| Model | CL-216MP-R | CL-DIMC2416MP | CL-GYM7816GP-SFP |
| Product Image |
|
|
|
| SPEC | 16xRJ45 + 2x100/1000Base-X SFP; AC 100~240V; 8W Max, Max<480w; 3Kg; Metal case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 16xRJ45 + 4x1000Base-X SFP; 48~57VDC, Redundant Power (6-pin Terminal Block); 8W Max, Max<480w; 155x115x85mm; 1.2Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 16xRJ45 + 8x1000Base-X SFP; 12~48VDC, Redundant Power (6-pin Terminal Block); 8W Max; 8W Max, Max<480w; 1.5Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Industrial Managed Switch(24/48 x RJ45 + 0/4 x SFP port) | |||
| Model | CL-DIMC2424MP | CL-GYM7024GP | CL-424MP-R |
| Product Image |
|
|
|
| SPEC | 24xRJ45 + 4x1000Base-X SFP; 12~48VDC, Redundant Power (6-pin Terminal Block); 8W Max, Max<720w; 155x115x85mm; 1.2Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 24xRJ45 ; 12~48VDC, Redundant Power (6-pin Terminal Block); 8W Max, Max<720w; 155x115x85m; 1.5Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs | 24xRJ45 + 4x100/1000Base-X SFP; AC 100~240V; 8W Max, Max<720w; 5Kg; 19" 1U Metal case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Model | CL-48MP-R | ||
| Product Image |
| ||
| SPEC | 48xRJ45 + 4x100/1000Base-X SFP; AC 100~240V; 8W Max, Max<1440w; 5.5Kg; 19" 1U Metal case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | ||
The Industrial Managed Switch is a rugged Ethernet switching solution designed for industrial networks that require intelligent traffic management, fiber uplinks, and reliable operation in harsh environments. The product family supports 8-port, 16-port, 24-port, and 48-port configurations with combinations of RJ45 and SFP interfaces, including selected 10G SFP+ uplinks. Advanced network functions include VLAN, QoS, LACP, SNMP, 802.1X, IPv6, PROFINET, and Modbus TCP, while redundant power, fanless cooling, and -40°C to 75°C operation support stable industrial deployment.
Key Features
Intelligent Network Management
The managed architecture provides VLAN segmentation, QoS traffic prioritization, LACP link aggregation, SNMP monitoring, 802.1X authentication, and IPv6 support for flexible network administration.
Flexible Copper and Fiber Ports
Available configurations combine 8, 16, 24, or 48 RJ45 ports with 2, 4, 6, or 8 SFP uplinks depending on the model.
10G Fiber Uplinks
The CL-MC2408MP model combines four 1000Base-X SFP ports with two 10GBase-SR/LR SFP+ ports for higher-bandwidth industrial uplinks.
Industrial Protocol Support
Support for PROFINET and Modbus TCP enables integration with industrial automation equipment, PLC systems, SCADA platforms, and control networks.
Redundant Power Design
Selected industrial models support redundant DC power inputs through terminal blocks to improve power continuity in critical network installations.
Wide Temperature Operation
The switch family supports an operating temperature range of -40°C to 75°C for demanding factory, energy, transportation, and outdoor environments.
Product Specifications
Port Configurations
8xRJ45 + 2/4/6 SFP; 16xRJ45 + 2/4/8 SFP; 24xRJ45 + 0/4 SFP; 48xRJ45 + 4 SFP
Fiber Interfaces
100/1000Base-X SFP, 1000Base-X SFP, and selected 10GBase-SR/LR SFP+
Power Input
12~48VDC or 48~57VDC with redundant power on selected industrial models; AC 100~240V on selected rack-mount models
Power Consumption
Up to 5W or 8W maximum depending on model
Network Capacity
PoE power budget is not applicable; this series is the managed industrial switch family without PoE functionality
Housing
Aluminum case or 19-inch 1U metal case depending on model
Operating Temperature
-40°C to 75°C
MTBF
More than 200,000 hours on listed models
Installation
DIN-style industrial installation or 19-inch 1U rack-mount deployment depending on model
Network Management Functions
VLAN Segmentation
VLAN functionality separates network traffic into logical segments to improve traffic organization, isolation, and network administration.
QoS Traffic Prioritization
QoS management helps prioritize important industrial traffic and maintain predictable network performance for critical applications.
LACP Link Aggregation
LACP supports link aggregation for combining multiple physical links into a logical connection with improved bandwidth and redundancy.
SNMP Remote Monitoring
SNMP enables centralized monitoring and management of industrial switch status and network conditions.
802.1X Authentication
802.1X provides port-based access authentication for controlling network access by connected devices.
IPv6 Compatibility
IPv6 support enables the switch to operate within modern network architectures using IPv6 addressing and management.
Industrial Network Architecture
Multi-Port Copper Access
RJ45 interfaces provide Ethernet access for industrial controllers, computers, sensors, monitoring systems, and other network endpoints.
Fiber Uplink Connectivity
SFP interfaces provide optical uplinks between industrial access networks, aggregation switches, control rooms, and backbone infrastructure.
High-Bandwidth Uplink Options
Selected models add 10GBase-SR/LR SFP+ interfaces for industrial networks requiring higher-capacity fiber aggregation.
Industrial Protocol Integration
PROFINET and Modbus TCP support facilitates communication between the managed switch and industrial automation, PLC, and SCADA environments.
Industrial Reliability Design
Ruggedized Construction
Industrial aluminum and metal enclosures provide a durable platform for deployment in demanding network environments.
Fanless Cooling
The fanless design eliminates mechanical cooling components and supports low-maintenance operation in industrial installations.
Vibration and Shock Resistance
The industrial design is intended to maintain stable operation in environments subject to mechanical vibration and shock.
IP30/IP40 Protection
Selected industrial models provide IP30 or IP40-rated enclosure protection for different deployment conditions.
Industrial EMC Compliance
The switch family is designed for industrial electromagnetic compatibility requirements and is certified with CE and FCC on the listed product range.
Extended Temperature Range
Operation from -40°C to 75°C supports installation in factories, energy facilities, transportation systems, and other harsh environments.
Applications
Factory Automation
Provides managed Ethernet connectivity for PLCs, industrial computers, sensors, control equipment, and automation networks.
Energy and Utility Networks
Redundant power, fiber uplinks, and industrial management functions support network infrastructure in energy and utility applications.
Transportation Systems
The rugged design and wide temperature range support Ethernet networks deployed across transportation and infrastructure environments.
SCADA Networks
Managed Ethernet features and industrial protocol support provide controlled connectivity for supervisory monitoring and control systems.
Industrial Control Networks
VLAN, QoS, authentication, and monitoring functions help organize and manage industrial control network traffic.
Fiber-Based Industrial Networks
Multiple SFP configurations enable optical links between distributed industrial network segments and centralized aggregation infrastructure.
Why Choose the Industrial Managed Switch
The Industrial Managed Switch family combines intelligent Layer 2 network management, flexible copper and fiber port configurations, industrial protocol support, and ruggedized hardware. With models ranging from 8-port to 48-port, optional 10G SFP+ uplinks, redundant power on selected industrial versions, fanless cooling, and -40°C to 75°C operation, the series provides scalable network infrastructure for industrial automation, energy, transportation, and control applications.
FAQ
Q1. What management functions does the Industrial Managed Switch support?
The switch supports VLAN, QoS, LACP, SNMP, 802.1X, and IPv6, together with industrial protocols such as PROFINET and Modbus TCP.
Q2. What port configurations are available?
The product family includes 8xRJ45, 16xRJ45, 24xRJ45, and 48xRJ45 configurations with different SFP and SFP+ uplink combinations.
Q3. Does the Industrial Managed Switch support 10G uplinks?
Yes. The CL-MC2408MP model includes two 10GBase-SR/LR SFP+ ports together with four 1000Base-X SFP ports and eight RJ45 ports.
Q4. Does the switch support redundant power?
Yes. Selected industrial models provide redundant DC power inputs through terminal blocks, while selected rack-mount models use AC 100~240V power.
Q5. What is the operating temperature range?
The listed Industrial Managed Switch models support an operating temperature range of -40°C to 75°C.
Industrial Managed Switch
Designed for industrial Ethernet network management, the Industrial Managed Switch family combines VLAN, QoS, LACP, SNMP, 802.1X, IPv6, PROFINET, and Modbus TCP support with flexible RJ45 and SFP configurations, redundant power options, and -40°C to 75°C operation.
