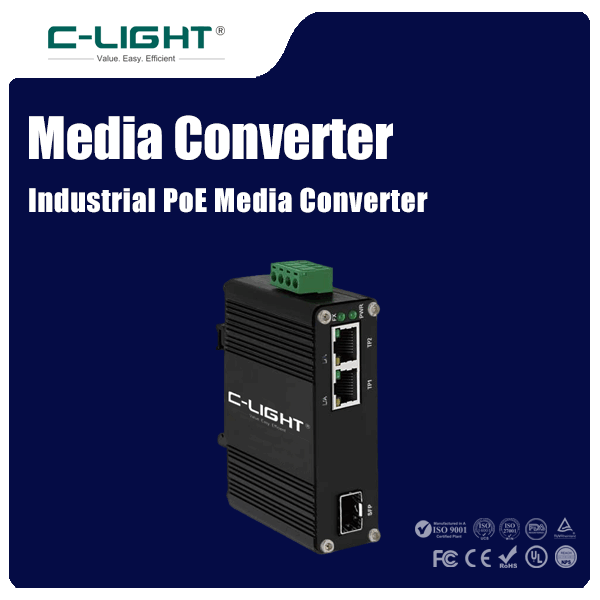

Industrial PoE Media Converter for Reliable Fiber-to-Ethernet PoE Connectivity
Industrial PoE Media Converter(RJ45+100Base-X SC) | |||
| Model | CL-IMC1100P Series | CL-IMC1100P60 Series | CL-IMC1100P90 Series |
Product Image |
|
|
|
| SPEC | 1xRJ45 + 1xSC 100Base-X; 12~48VDC,4-pin terminal block; 30W PoE; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 1xRJ45 + 1xSC 100Base-X; 12~48VDC,4-pin terminal block; 60W PoE; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 1xRJ45 + 1xSC 100Base-X; 12~48VDC,4-pin terminal block; 90W PoE; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Model | CL-IMC1200P Series | CL-IMC1200P60 Series | CL-IMC1200P90 Series |
Product Image |
|
|
|
| SPEC | 2xRJ45 + 1xSC 100Base-X; 12~48VDC,4-pin terminal block; 30W PoE; 95 x 70 x 30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 2xRJ45 + 1xSC 100Base-X; 12~48VDC,4-pin terminal block; 60W PoE; 95 x 70 x 30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 2xRJ45 + 1xSC 100Base-X; 12~48VDC,4-pin terminal block; 90W PoE; 95 x 70 x 30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
Industrial PoE Media Converter(RJ45+1000Base-X SC) | |||
| Model | CL-IMC3012P Series | CL-IMC3012P60 Series | CL-IMC3012P90 Series |
Product Image |
|
|  |
| SPEC | 1xRJ45 + 1xSC 1000Base-X; 12~48VDC,4-pin terminal block; 30W PoE; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 1xRJ45 + 1xSC 1000Base-X; 12~48VDC,4-pin terminal block; 60W PoE; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 1xRJ45 + 1xSC 1000Base-X; 12~48VDC,4-pin terminal block; 90W PoE; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Model | CL-IMC1200GP Series | CL-IMC1200GP60 Series | CL-IMC1200GP90 Series |
Product Image |
|
|
|
| SPEC | 2xRJ45 + 1xSC 1000Base-X; 12~48VDC, 2-pin terminal block; 65W Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 2xRJ45 + 1xSC 1000Base-X; 48~57VDC, 2-pin terminal block; 125W Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 2xRJ45 + 1xSC 1000Base-X; 48~57VDC, 2-pin terminal block; 185W Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Industrial PoE Media Converter(RJ45+1000Base-X SFP) | |||
| Model | CL-IMC3012P-SFP | CL-IMC3012P60-SFP | CL-IMC3012P90-SFP |
Product Image |
|
|
|
| SPEC | 1xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection); 12~48VDC,4-pin terminal block; 36W Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 1xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection); 12~48VDC,4-pin terminal block; 65W Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs | 1xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection); 48~57VDC,4-pin terminal block; 95W Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Model | CL-IMC1200GP-SFP | CL-IMC1200GP60-SFP | CL-IMC1200GP90-SFP |
Product Image |
|
|
|
| SPEC | 2xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection); 12~48VDC,4-pin terminal block; 65W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 2xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection); 48~57VDC,4-pin terminal block; 125W Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs | 2xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection); 48~57VDC,4-pin terminal block; 185W Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
Industrial PoE Media Converter(RJ45+10GBase-X SFP+) | |||
| Model | CL-IMC10GP30-SFP+ | CL-IMC10GP60-SFP+ | CL-IMC10GP90-SFP+ |
Product Image |
|
|
|
| SPEC | 1xRJ45 + 1xSFP+; 48~57VDC, Redundant Power (4-pin Terminal Block); 30W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 1xRJ45 + 1xSFP+; 48~57VDC, Redundant Power (4-pin Terminal Block); 60W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs | 1xRJ45 + 1xSFP+; 48~57VDC, Redundant Power (4-pin Terminal Block); 90W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
The Industrial PoE Media Converter combines Ethernet media conversion with Power over Ethernet for industrial networks that require simultaneous data and power transmission over copper and fiber. The product family includes 100Base-X SC, 1000Base-X SC, 100/1000Base-X SFP, and 10GBase-X SFP+ configurations, with PoE power options from 30W to 90W on selected models. Compact aluminum enclosures, DIN rail installation, redundant power on selected configurations, and -40°C to 75°C operation make the series suitable for factory automation, intelligent transportation, surveillance, and other demanding industrial applications.
Key Features
PoE and Fiber Media Conversion
The converter combines copper Ethernet and optical fiber media conversion with PoE power delivery, allowing connected Ethernet devices to receive both data and power.
100Mbps to 10Gbps Fiber Options
The product family includes 100Base-X, 1000Base-X, auto-detected 1000Base-X/100Base-FX, and 10GBase-X SFP+ interfaces for different network requirements.
Flexible PoE Power Levels
Available configurations provide 30W, 36W, 60W, 65W, 90W, 95W, 125W, or 185W maximum power depending on the model.
Compact Industrial Design
The 95mm x 70mm x 30mm aluminum enclosure provides a compact and rugged platform for industrial Ethernet installation.
DIN Rail Installation
The industrial enclosure supports DIN rail deployment for convenient installation in control cabinets and distributed industrial network locations.
Wide Temperature Operation
The converter family supports an operating temperature range of -40°C to 75°C for demanding industrial and outdoor environments.
Product Specifications
Copper Interface
1xRJ45 or 2xRJ45 depending on model
Fiber Interface
100Base-X SC, 1000Base-X SC, 1000Base-X or 100Base-FX SFP, and 10GBase-X SFP+
PoE Power Options
30W, 36W, 60W, 65W, 90W, 95W, 125W, or 185W maximum depending on model
Power Input
12~48VDC or 48~57VDC depending on model, with redundant power on selected configurations
Housing
Aluminum case
Dimensions
95mm x 70mm x 30mm
Weight
Approximately 0.25kg
Operating Temperature
-40°C to 75°C
MTBF
More than 200,000 hours on listed models
PoE Media Conversion Options
100Base-X SC Models
The CL-IMC1100P and CL-IMC1200P series provide 1 or 2 RJ45 ports with 100Base-X SC fiber connectivity and 30W, 60W, or 90W PoE options.
1000Base-X SC Models
The CL-IMC3012P series combines 1xRJ45 with 1000Base-X SC fiber and 30W, 60W, or 90W PoE options, while CL-IMC1200GP provides 2xRJ45 plus 1000Base-X SC with higher power configurations.
1000Base-X SFP Models
The CL-IMC3012P-SFP and CL-IMC1200GP-SFP series use SFP fiber interfaces supporting 1000Base-X or 100Base-FX auto detection on selected models.
10G SFP+ Models
The CL-IMC10GP30-SFP+, CL-IMC10GP60-SFP+, and CL-IMC10GP90-SFP+ provide 1xRJ45 plus 1xSFP+ for 10G optical uplink applications with 30W, 60W, or 90W maximum PoE power.
Industrial PoE Network Architecture
Copper PoE Access
RJ45 ports provide Ethernet connectivity and PoE power to compatible devices such as IP cameras, wireless access points, and industrial Ethernet terminals.
Fiber Uplink
SC, SFP, and SFP+ interfaces convert copper Ethernet to optical fiber for extending industrial network connections and reducing the impact of electromagnetic interference.
Gigabit Optical Conversion
1000Base-X interfaces provide Gigabit fiber connectivity for industrial networks requiring higher optical uplink bandwidth.
10G Optical Uplink
10GBase-X SFP+ configurations provide high-bandwidth optical uplinks for industrial networks with increased aggregation and transport requirements.
High-Power PoE
Selected models provide up to 185W maximum power, supporting industrial PoE deployments with higher device power requirements.
Redundant Power Input
Selected models use redundant DC power inputs through terminal blocks to improve power continuity for critical industrial installations.
Industrial Reliability Design
Rugged Aluminum Housing
The aluminum enclosure provides a durable and compact platform for industrial Ethernet and PoE media conversion equipment.
Wide Temperature Range
Operation from -40°C to 75°C supports deployment in factories, transportation infrastructure, surveillance systems, and outdoor network locations.
Vibration and Shock Resistance
The industrial design supports stable operation in environments where mechanical vibration and shock may be present.
EMI-Resistant Fiber Links
Optical fiber uplinks provide immunity to electromagnetic interference on the fiber portion of the network, which is useful in electrically noisy industrial environments.
Fanless Compact Design
The compact industrial converter architecture supports low-maintenance installation without dependence on mechanical cooling fans.
Long-Term Reliability
Listed models provide an MTBF greater than 200,000 hours for long-term industrial network operation.
Applications
Factory Automation
Provides combined optical Ethernet conversion and PoE power for industrial cameras, automation terminals, and connected network devices.
Intelligent Transportation
Supports PoE network connectivity for cameras, access points, and other Ethernet devices deployed in transportation infrastructure.
Industrial Surveillance
Extends fiber Ethernet connections to remote IP cameras while supplying power through the copper Ethernet connection.
Wireless Access Networks
PoE capability allows compatible wireless access points to receive network connectivity and power over a single Ethernet cable.
Industrial Fiber Networks
SC, SFP, and SFP+ fiber interfaces support network extension between distributed industrial locations and centralized infrastructure.
Outdoor PoE Deployments
The rugged enclosure and -40°C to 75°C operating range support PoE media conversion in demanding outdoor network environments.
Why Choose the Industrial PoE Media Converter
The Industrial PoE Media Converter family combines PoE power delivery, Ethernet-to-fiber media conversion, and rugged industrial hardware in a compact DIN rail-ready platform. With 100Mbps, Gigabit, and selected 10G optical interfaces, multiple RJ45 configurations, PoE power options up to 185W, redundant power on selected models, and -40°C to 75°C operation, the series provides flexible solutions for extending powered Ethernet devices over industrial fiber networks.
FAQ
Q1. What does an Industrial PoE Media Converter do?
It combines Ethernet media conversion with PoE power delivery, allowing copper Ethernet devices to communicate through fiber while receiving power through the RJ45 connection.
Q2. What fiber interfaces are available?
Depending on the model, the series supports 100Base-X SC, 1000Base-X SC, 1000Base-X or 100Base-FX SFP, and 10GBase-X SFP+ interfaces.
Q3. What PoE power levels are available?
Available configurations range from 30W to 185W maximum power depending on the model.
Q4. Do the converters support redundant power?
Yes. Selected models provide redundant DC power inputs through terminal blocks for improved power continuity.
Q5. What is the operating temperature range?
The listed Industrial PoE Media Converter models support an operating temperature range of -40°C to 75°C.
Industrial PoE Media Converter
Designed for industrial fiber and PoE networks, the Industrial PoE Media Converter combines copper-to-fiber conversion, PoE power delivery, 100Mbps to 10G optical options, rugged aluminum construction, redundant power on selected models, and -40°C to 75°C operation.
