Industrial Unmanaged Switch for Reliable Plug-and-Play Industrial Ethernet
Industrial Unmanaged Switch(RJ45 port Only) | ||
| Model | CL-IMC005G | CL-IMC010G |
| Product Image |
|
|
| SPEC | 5x1000 RJ45; 12~48VDC (Terminal Block); <6w> 95x70x29 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 10x1000 RJ45; 12~48VDC Redundant power with polarity reverses protection function； <6w> 95x70x29 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |

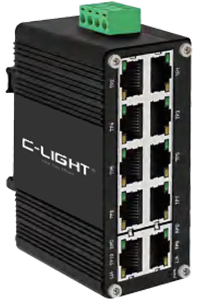

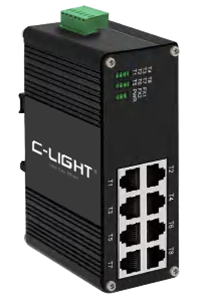

| Model | CL-IMC008 | CL-IMC008G |
| Product Image |
|
|
| SPEC | 8x100 RJ45; 12~48VDC, Redundant Power (6-pin Terminal Block)； 5W Max; 150x115x50 mm; 0.6Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8x1000 RJ45; 12~48VDC, Redundant Power (6-pin Terminal Block)； 5W Max; 150x115x50 mm; 0.6Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
Industrial Unmanaged Switch(RJ45+1000Base-X) | |||
| Model | CL-IMC103G Series | CL-IMC103G-SFP | CL-IMC104G-SFP |
| Product Image |
|
|
|
| SPEC | 3xRJ45+1xSC 1000BASE-X; 12~48VDC, 2-pin terminal block; 5W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs | 3xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection)； 12~48VDC, 2-pin terminal block; 5W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs | 4xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection)； 12~48VDC, 2-pin terminal block; 5W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Model | CL-IMC104G Series | CL-IMC108G Series | |
| Product Image |
|  | |
| SPEC | 4xRJ45 + 1x1000Base-FX (SFP, SC, FC, ST Optional); 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x30 mm; 0.5Kg; Metal Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs | 8xRJ45 + 1x1000Base-FX (SFP, SC, FC, ST Optional); 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x50 mm; 0.6Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | |
Industrial Unmanaged Switch(RJ45+100Base-X) | ||
| Model | CL-IMC104 Series | CL-IMC108 Series |
| Product Image | ||
| Product Image |
|
|
| SPEC | 4xRJ45 + 1x100Base-FX (SFP, SC, FC, ST Optional); 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x30 mm; 0.5Kg; Metal Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8xRJ45 + 1x100Base-FX (SFP, SC, FC, ST Optional); 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x50 mm; 0.6Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
Industrial Unmanaged Switch(2-SFP-Port) | |||
| Model | CL-IMC202 Series | CL-IMC202G Series | CL-IMC204 Series |
| Product Image |
|
|
|
| SPEC | 2xRJ45 + 2x100base-X; 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x30 mm; 0.5Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 2xRJ45 + 2x1000base-X; 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x30 mm; 0.5Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 4xRJ45 + 2x100Base-FX (SFP, SC, FC, ST Optional); 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x30 mm; 0.5Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Model | CL-IMC204G Series | CL-IMC208 Series | CL-IMC208G Series |
| Product Image |
|
|
|
| SPEC | 4xRJ45 + 2x1000Base-FX (SFP, SC, FC, ST Optional); 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x30 mm; 0.5Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8xRJ45 + 2x100 Base-FX (SFP, SC, FC, ST Optional); 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x60 mm; 0.6Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8xRJ45 + 2x1000Base-FX (SFP, SC, FC, ST Optional); 12~58VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x60 mm; 0.6Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs |
Industrial Unmanaged Switch(3/4/6 SFP port) | ||
| Model | CL-IMC306 Series | CL-IMC408G |
| Product Image |
|
|
| SPEC | 6xRJ45 + 3x100 Base-FX (SFP, SC, FC, ST Optional); 12~48VDC, Redundant Power (6-pin Terminal Block); 5W Max; 150x115x50mm; 0.55Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8xRJ45 + 4x100 Base-X SFP; 12~48VDC, Redundant Power (6-pin Terminal Block); 8W Max; 150x115x50mm; 0.55Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
| Model | CL-GY416-SFP | CL-IMC2X4S8G |
| Product Image |
|
|
| SPEC | 16xRJ45 + 4x1000 Base-X SFP; 12~48VDC, Redundant Power (6-pin Terminal Block); 8W Max; 150x115x50mm;; 0.55Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 8xRJ45 + 4x1000Base-X SFP + 2x 10G Base-SR/LR SFP+; 12~48VDC, Redundant Power (6-pin Terminal Block); 8W Max; 150x115x50mm;; 0.55Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
The Industrial Unmanaged Switch is a rugged plug-and-play Ethernet switching solution designed for industrial networks requiring reliable data transmission without network configuration. The product family provides copper-only and copper-to-fiber configurations, including 100Mbps and Gigabit Ethernet options with RJ45, SFP, SC, FC, and ST interfaces on selected models. With aluminum or metal enclosures, redundant power inputs on selected models, fanless operation, and an operating temperature range of -40°C to 75°C, the series provides flexible connectivity for factory automation, transportation, energy, and other industrial environments.
Key Features
Plug-and-Play Operation
The unmanaged architecture provides straightforward Ethernet connectivity without requiring complex configuration or network management.
Flexible Copper and Fiber Connectivity
The product family combines RJ45 Ethernet ports with optional SFP, SC, FC, or ST fiber interfaces for different industrial network topologies.
100Mbps and Gigabit Ethernet
Available models support 100Base-FX, 1000Base-X, and 100/1000Mbps fiber connectivity together with 100Mbps or 1000Mbps RJ45 ports.
Redundant Power Options
Selected models provide redundant DC power inputs through terminal blocks to improve power continuity in critical industrial network installations.
Industrial Rugged Design
Aluminum or metal enclosures, fanless cooling, and industrial EMC design provide reliable operation in demanding deployment environments.
Wide Temperature Range
The listed models support operating temperatures from -40°C to 75°C for factory, transportation, energy, and outdoor network applications.
Product Specifications
RJ45 Port Options
2x, 3x, 4x, 5x, 6x, 8x, 10x, or 16x RJ45 depending on model
Ethernet Speed
100Mbps or 1000Mbps RJ45; 100Base-FX, 1000Base-X, or 100/1000Base-X fiber options
Fiber Interface Options
SFP, SC, FC, and ST options on selected fiber models
Power Input
12~48VDC or 12~58VDC depending on model, with redundant power on selected configurations
Power Consumption
5W maximum on most listed models; up to 8W on higher-port-density configurations
Housing
Aluminum case or metal case depending on model
Operating Temperature
-40°C to 75°C
MTBF
More than 200,000 hours on listed models
Mounting
Industrial installation with compact enclosure designs for different deployment environments
Product Configuration Options
RJ45-Only Models
The CL-IMC005G and CL-IMC010G provide 5-port and 10-port Gigabit RJ45 connectivity, while the CL-IMC008 and CL-IMC008G provide 8-port 100Mbps and Gigabit configurations.
RJ45 with Gigabit Fiber
The CL-IMC103G, CL-IMC103G-SFP, and CL-IMC104G-SFP combine RJ45 interfaces with 1000Base-X or automatically detected 1000Base-X/100Base-FX fiber connectivity.
RJ45 with 100Mbps Fiber
The CL-IMC104 and CL-IMC108 series combine 4 or 8 RJ45 ports with 100Base-FX fiber interfaces and optional SFP, SC, FC, or ST connectors.
2-SFP-Port Models
The CL-IMC202, CL-IMC202G, CL-IMC204, CL-IMC204G, CL-IMC208, and CL-IMC208G series provide different combinations of RJ45 and dual fiber uplink ports.
Multi-SFP Configurations
The CL-IMC306, CL-IMC408G, and CL-GY416-SFP provide higher-density fiber connectivity with 3 or 4 SFP ports for industrial aggregation and uplink applications.
10G Uplink Option
The CL-IMC2X4S8G combines 8xRJ45, 4x1000Base-X SFP, and 2x10GBase-SR/LR SFP+ interfaces for higher-capacity industrial network uplinks.
Industrial Ethernet Architecture
Copper Ethernet Access
RJ45 ports provide direct Ethernet connectivity for industrial controllers, computers, sensors, monitoring equipment, and other network endpoints.
Fiber Uplink Connectivity
SFP, SC, FC, and ST interfaces on selected models extend industrial Ethernet networks through optical fiber connections.
Gigabit Fiber Expansion
Gigabit fiber models support higher-speed optical uplinks for connecting distributed industrial networks to aggregation equipment.
10G Optical Uplink
The CL-IMC2X4S8G provides dual 10G SFP+ uplinks together with Gigabit SFP and RJ45 interfaces for higher-bandwidth industrial aggregation.
Redundant Power
Selected models use redundant DC power inputs through 6-pin terminal blocks to improve network availability in critical applications.
Fanless Operation
The fanless design eliminates mechanical cooling fans and supports low-maintenance operation in industrial environments.
Industrial Reliability Design
Rugged Enclosure
Aluminum and metal housings provide a durable platform for industrial Ethernet switching equipment deployed in demanding conditions.
Wide Temperature Operation
The -40°C to 75°C operating range supports deployment in factories, transportation infrastructure, energy facilities, and outdoor network locations.
Vibration and Shock Resistance
The industrial design supports reliable network operation in environments where mechanical vibration and shock may be present.
Industrial EMC Design
The switch family is designed for industrial electromagnetic compatibility requirements and supports CE and FCC certification on the listed range.
Low Power Consumption
Most listed models use no more than 5W, helping reduce power requirements for distributed industrial network deployments.
Long-Term Reliability
Listed models provide an MTBF greater than 200,000 hours for long-term industrial Ethernet operation.
Applications
Factory Automation
Provides reliable Ethernet connectivity for industrial controllers, automation equipment, monitoring systems, and distributed network devices.
Traffic Monitoring
Rugged Ethernet and fiber connectivity support network infrastructure used for transportation and traffic monitoring systems.
Energy Systems
Redundant power options and wide temperature operation support Ethernet deployment in demanding energy and utility environments.
Industrial Surveillance
Provides stable Ethernet and fiber connectivity for industrial monitoring and surveillance equipment.
Remote Industrial Networks
Fiber uplink options enable network extension between distributed industrial locations and centralized network infrastructure.
Industrial Ethernet Aggregation
Higher-density SFP configurations provide flexible aggregation and optical uplink connectivity for larger industrial networks.
Why Choose the Industrial Unmanaged Switch
The Industrial Unmanaged Switch family combines simple plug-and-play operation with flexible copper and fiber connectivity for industrial Ethernet deployment. With 100Mbps and Gigabit models, multiple SFP configurations, optional SC/FC/ST interfaces, a 10G SFP+ uplink model, redundant power on selected products, fanless cooling, and -40°C to 75°C operation, the series can be matched to compact edge networks as well as higher-density industrial fiber infrastructures.
FAQ
Q1. What is an Industrial Unmanaged Switch?
An Industrial Unmanaged Switch provides basic Ethernet switching and fiber connectivity without requiring network configuration, making it suitable for simple plug-and-play industrial deployments.
Q2. What Ethernet speeds are available?
The product family includes 100Mbps and Gigabit RJ45 models, together with 100Base-FX, 1000Base-X, and 100/1000Base-X fiber options.
Q3. What fiber interfaces are available?
Depending on the model, fiber interfaces include SFP, SC, FC, and ST, with 100Mbps or Gigabit optical connectivity.
Q4. Does the series support redundant power?
Yes. Selected models provide redundant DC power inputs through terminal blocks for improved power continuity.
Q5. What is the operating temperature range?
The listed Industrial Unmanaged Switch models support an operating temperature range of -40°C to 75°C.
Industrial Unmanaged Switch
Designed for reliable plug-and-play industrial networking, the Industrial Unmanaged Switch family provides flexible RJ45 and fiber configurations, 100Mbps to Gigabit connectivity, optional 10G SFP+ uplinks, redundant power on selected models, and -40°C to 75°C operation.
