| Form Factor | Part No. | Fiber Type | Data Rate | Wavelength | Distance | Connector | Temperature | Note |
| 200G QSFP-DD - 200G QSFP-DD | CLQD2-QD2AOC-xx | MMF | 200G | 850nm | 1-30M | OM3 | Com. | |
| 200G QSFP56- 200G QSFP56 | CLQ56-Q56AOC-xx | MMF | 200G | 850nm | 1-30M | OM3 | Com. | |
| 200G QSFP56- 2X100G QSFP56 | CLQ56-2xQ56AOC-xx | MMF | 200G/ 100G | 850nm | 1-30M | OM3 | Com. | |
| 200G QSFP-DD- 8X25G SFP28 | CLQD2-8xS28AOC-xx | MMF | 200G/25G | 850nm | 1-30M | OM3 | Com. | |
| 200G QSFP56- 2X100G QSFP56 | CLQ56-2xQ56AOC-xx | MMF | 200G/ 100G | 850nm | 1-30M | OM3 | Com. | |
| 200G OSFP56- 2X 100G QSFP56 | CLOP2-2xQ56AOC-xx | MMF | 200G/ 100G | 850nm | 1-30M | OM3 | Com. | |
| 2x200G QSFP56- 2x200G QSFP56 | CL2xQ56-2xQ56AOC-xx | MMF | 2*200G/2*200G | 850nm | 1-30M | OM3 | Com. | |
| 200G QSFP56 to 2x100G QSFP56 | CLQ56-2xQ56AOC-xx | MMF | 200G/ 100G | 850nm | 1-30M | OM3 | Com. |

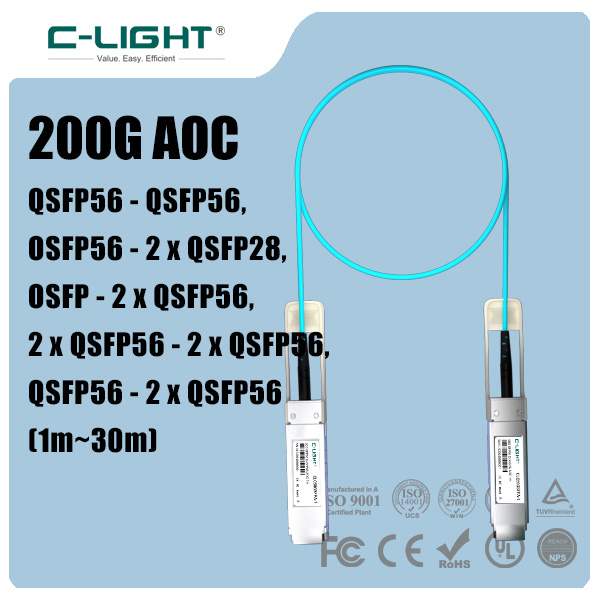

C-LIGHT 200G AOC active optical cables are designed for high-bandwidth short-reach connections in data centers, AI computing clusters, high-performance computing systems, and modern Ethernet networks. The active optical design integrates the optical components with the cable assembly, providing a ready-to-use interconnect for high-density equipment.
The 200G AOC family includes QSFP56 and QSFP-DD configurations, together with breakout architectures for connecting 200G ports with lower-speed interfaces. Current product configurations use 850nm multimode optical transmission and support 1m to 30m cable lengths with OM3 fiber.
Based on four-channel PAM4 transmission, the 200G AOC platform provides an efficient approach to short-distance high-speed interconnection while offering lighter cabling and greater installation flexibility than comparable copper-based solutions.
The 200G AOC uses four-channel PAM4 signaling, with each lane operating at 50Gb/s to achieve an aggregated 200Gb/s data rate.
The product family provides QSFP56-to-QSFP56 and QSFP-DD-based configurations for different 200G network platforms.
Breakout configurations allow a single 200G connection to be divided into two 100G links for mixed-speed network architectures.
The QSFP-DD to 8xSFP28 configuration provides a high-density connection between one 200G interface and eight 25G ports.
The listed product configurations use 850nm optical transmission for short-distance multimode fiber connectivity.
The current product specifications use OM3 multimode fiber for the standard 1m to 30m cable configurations.
The integrated cable structure is optimized for equipment connections within the same rack or between nearby racks.
The 200G AOC platform can be used in InfiniBand HDR environments as well as compatible Ethernet networking applications.
200G AOCs provide high-bandwidth links between GPU servers, switches, and other computing resources used in AI training and inference environments.
Compatible 200G configurations can support HDR InfiniBand interconnects used in high-performance computing and accelerated computing systems.
The active optical cable provides a practical short-distance connection between high-speed server ports and network switches.
200G AOCs can be deployed between compatible switching platforms where high bandwidth is required over a relatively short physical distance.
Short cable lengths make the product suitable for connections between equipment located within the same rack or in adjacent rack positions.
High-performance computing environments can use 200G optical links to move large volumes of data between compute and networking resources.
200G-to-2x100G configurations provide a practical way to connect new 200G uplinks with existing or lower-speed 100G interfaces.
The 200G-to-8x25G configuration can aggregate multiple 25G connections toward a higher-capacity network interface.
The four-lane PAM4 architecture provides 200Gb/s bandwidth in a compact active optical cable assembly.
200G-to-100G and 200G-to-25G configurations allow the same product family to address different network topologies and migration requirements.
Support for Ethernet and InfiniBand HDR makes the product relevant to both conventional data center networking and accelerated computing environments.
Compared with copper-based high-speed connections, active optical cables can provide a lighter cable assembly and greater flexibility for dense rack deployments.
The standard 1m to 30m product range focuses on the short-distance connections commonly found inside modern data centers.
QSFP56 and QSFP-DD configurations allow customers to match the AOC with different 200G equipment platforms.
C-LIGHT states that its AOC products undergo compatibility validation across mainstream network equipment platforms before shipment.
C-LIGHT can provide customized AOC configurations according to connector combination, cable length, network architecture, and equipment compatibility requirements.
A 200G AOC is an active optical cable designed to provide 200Gb/s short-distance network connectivity with optical components integrated into the cable assembly.
The C-LIGHT 200G AOC uses four-channel PAM4 transmission, with each optical lane operating at 50Gb/s.
The product family includes 200G QSFP56 and 200G QSFP-DD configurations, together with several breakout options.
Yes. The product family includes 200G-to-2x100G configurations for connecting a 200G interface with two 100G interfaces.
Yes. C-LIGHT lists a QSFP-DD to 8xSFP28 configuration for 200G-to-8x25G connectivity.
The current standard product configurations use 850nm optical transmission over OM3 multimode fiber.
The current product specifications list 1m to 30m cable lengths for the 200G AOC configurations.
Yes. C-LIGHT specifies compatibility with InfiniBand HDR in addition to supported Ethernet applications.
C-LIGHT 200G AOC active optical cables provide a compact and flexible interconnect solution for AI data centers, HPC systems, InfiniBand HDR networks, and high-speed Ethernet infrastructure. With QSFP56 and QSFP-DD interfaces, four-channel PAM4 transmission, 850nm multimode optics, OM3 fiber, and 200G breakout options for 100G and 25G connectivity, the product family supports both direct 200G links and mixed-speed network architectures. The integrated active optical design is particularly suitable for dense short-reach connections where bandwidth, cable flexibility, and deployment efficiency are important.
