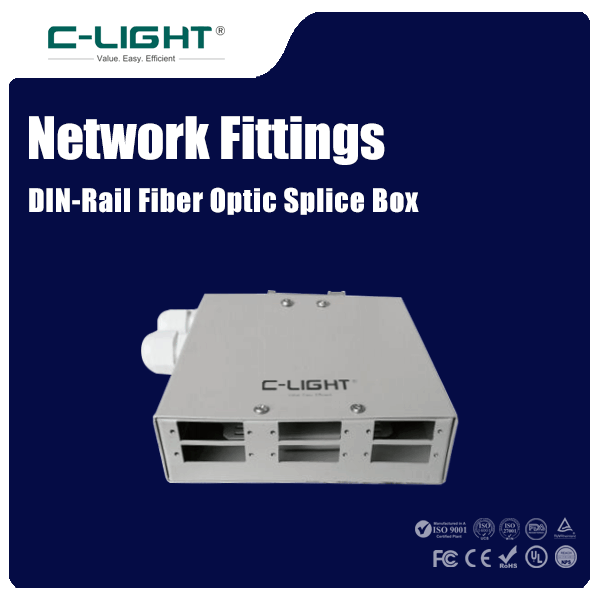

DIN-Rail Fiber Optic Splice Box for Compact and Secure Fiber Management
DIN-Rail Fiber Optic Splice Box | |||
| Model | CL-FSB-6 series | CL-FSB-8 series | CL-FSB-12 series |
Product Image |
|
|
|
| SPEC | Cold-roll steel, electrostatic painting; Suitable for different adapters: FC, SC, ST, LC; 2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports; Splicing module of 12 fibers inside; Max. 12pcs adapters can be loaded. | Cold-roll steel, electrostatic painting; Suitable for different adapters: FC, SC, ST, LC; 2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports; Splicing module of 8 fibers inside; Max. 8pcs adapters can be loaded. | Up to 12 ports (SC-Duplex, ST-Duplex FC-Duplex or LC-Quad adapters)； IP20 protection； 2x rear entries (PG 16 cable gland)； Grey color (RAL 7035)； -40°C to 80°C； Al (Aluminum) material. |
The C-LIGHT DIN-Rail Fiber Optic Splice Box is a compact fiber management enclosure designed for fiber splicing, adapter installation, and organized fiber termination in industrial and equipment cabinet environments. The product family includes CL-FSB-6, CL-FSB-8, and CL-FSB-12 series, supporting different fiber splice and adapter capacities. Available features include cold-rolled steel or aluminum construction, FC/SC/ST/LC adapter compatibility, cable and pigtail entry ports, IP20 protection on the CL-FSB-12 series, and an operating temperature range of -40°C to 80°C for the aluminum configuration.
Key Features
DIN-Rail Fiber Splice Design
The splice box is designed for DIN-rail installation, providing an organized enclosure for fiber splicing and termination in control cabinets and industrial network systems.
Multiple Fiber Capacity Options
The CL-FSB series provides different internal splice and adapter capacities, including 8-fiber and 12-fiber configurations.
FC, SC, ST and LC Compatibility
The CL-FSB-6 and CL-FSB-8 series support FC, SC, ST, and LC adapters for flexible fiber termination and connection management.
Dedicated Cable Entry and Pigtail Ports
The CL-FSB-6 and CL-FSB-8 series provide two cable entry/exit ports and twelve pigtail entry/exit ports for organized fiber routing.
Compact Industrial Construction
Cold-rolled steel with electrostatic painting and aluminum construction options provide durable enclosures for different installation requirements.
Wide Temperature Capability
The aluminum CL-FSB-12 configuration supports an operating temperature range from -40°C to 80°C for demanding industrial environments.
Product Specifications
Product Series
CL-FSB-6, CL-FSB-8, and CL-FSB-12
CL-FSB-6 Construction
Cold-rolled steel with electrostatic painting
CL-FSB-8 Construction
Cold-rolled steel with electrostatic painting
CL-FSB-12 Construction
Aluminum
CL-FSB-6 Splice Capacity
12-fiber internal splicing module
CL-FSB-8 Splice Capacity
8-fiber internal splicing module
CL-FSB-6 Adapter Capacity
Up to 12 adapters
CL-FSB-8 Adapter Capacity
Up to 8 adapters
CL-FSB-12 Adapter Options
Up to 12 ports using SC-Duplex, ST-Duplex, FC-Duplex, or LC-Quad adapters
CL-FSB-6 / CL-FSB-8 Ports
2 cable entry/exit ports and 12 pigtail entry/exit ports
CL-FSB-12 Protection
IP20
CL-FSB-12 Cable Entry
2 rear entries with PG16 cable glands
CL-FSB-12 Color
Grey, RAL 7035
CL-FSB-12 Operating Temperature
-40°C to 80°C
Model Options
CL-FSB-6 Series
The CL-FSB-6 series uses cold-rolled steel with electrostatic painting, supports FC, SC, ST, and LC adapters, provides two cable entry/exit ports and twelve pigtail entry/exit ports, and incorporates a 12-fiber internal splicing module with capacity for up to twelve adapters.
CL-FSB-8 Series
The CL-FSB-8 series uses cold-rolled steel with electrostatic painting and supports FC, SC, ST, and LC adapters. It provides two cable entry/exit ports, twelve pigtail entry/exit ports, an 8-fiber internal splicing module, and capacity for up to eight adapters.
CL-FSB-12 Series
The CL-FSB-12 series uses an aluminum housing and supports up to twelve ports with SC-Duplex, ST-Duplex, FC-Duplex, or LC-Quad adapter configurations.
CL-FSB-12 Industrial Configuration
The CL-FSB-12 provides IP20 protection, two rear PG16 cable-gland entries, RAL 7035 grey finish, and -40°C to 80°C operating temperature.
Fiber Splicing and Termination
Internal Fiber Splicing
The splice box provides an enclosed space for organizing and protecting fiber splicing points within a structured DIN-rail installation.
Adapter Integration
Compatible adapter configurations allow terminated fibers to be connected through commonly used FC, SC, ST, and LC interfaces.
Cable Entry Management
Dedicated cable entry and exit ports provide a structured path for incoming and outgoing fiber cables.
Pigtail Routing
Dedicated pigtail entry and exit ports help organize fiber pigtails and maintain a controlled internal fiber layout.
Compact Fiber Organization
The enclosed structure keeps splice and termination components organized within a compact equipment-cabinet footprint.
Modular Capacity Selection
Different CL-FSB series capacities allow the enclosure to be selected according to splice count and adapter requirements.
DIN-Rail Installation
Industrial Cabinet Integration
The DIN-rail format allows the splice box to be installed alongside compatible industrial network and control equipment inside cabinets.
Space-Efficient Fiber Management
DIN-rail mounting helps organize fiber termination equipment efficiently in installations where cabinet space is limited.
Structured Fiber Layout
The dedicated enclosure provides a fixed location for fiber splicing, adapter mounting, cable entry, and pigtail routing.
Quick Installation
The DIN-rail mounting architecture supports straightforward installation and removal during network deployment and maintenance.
Protection and Construction
Cold-Rolled Steel Housing
The CL-FSB-6 and CL-FSB-8 series use cold-rolled steel with electrostatic painting for a durable fiber management enclosure.
Aluminum Housing
The CL-FSB-12 series uses aluminum construction for a lightweight and durable DIN-rail fiber enclosure.
IP20 Protection
The CL-FSB-12 series provides IP20 protection for indoor cabinet and controlled equipment-room applications.
PG16 Cable Glands
Two rear PG16 cable-gland entries are provided on the CL-FSB-12 series for organized cable entry.
Wide Temperature Range
The CL-FSB-12 aluminum configuration supports operation from -40°C to 80°C.
RAL 7035 Finish
The CL-FSB-12 series uses a grey RAL 7035 finish for a standardized industrial equipment appearance.
Applications
Factory Automation
Provides organized fiber splicing and termination for industrial communication networks deployed in automation and control cabinets.
Energy Distribution
The compact DIN-rail fiber enclosure supports optical fiber management in electrical and energy distribution equipment.
Building Control
Provides a structured fiber termination point for building automation and communication systems installed inside equipment cabinets.
Transportation Systems
The DIN-rail format supports fiber splicing and connection management for transportation control and communication equipment.
Industrial Fiber Networks
Provides a compact enclosure for organizing fiber splices, adapters, cables, and pigtails within distributed industrial networks.
Equipment Cabinets
Supports centralized fiber termination and splicing inside network cabinets, control panels, and other structured equipment enclosures.
Why Choose the DIN-Rail Fiber Optic Splice Box
The C-LIGHT DIN-Rail Fiber Optic Splice Box provides a compact and organized platform for fiber splicing and termination in industrial equipment environments. With CL-FSB-6, CL-FSB-8, and CL-FSB-12 options, FC/SC/ST/LC adapter compatibility on selected series, dedicated cable and pigtail routing, and an aluminum configuration rated from -40°C to 80°C, the product family can be matched to different fiber capacity and cabinet installation requirements.
FAQ
Q1. What is a DIN-Rail Fiber Optic Splice Box?
It is a compact fiber management enclosure designed for fiber splicing, adapter installation, cable routing, and fiber termination in DIN-rail equipment installations.
Q2. What models are available?
The product family includes CL-FSB-6, CL-FSB-8, and CL-FSB-12 series.
Q3. What adapters are supported?
The CL-FSB-6 and CL-FSB-8 series support FC, SC, ST, and LC adapters. The CL-FSB-12 supports SC-Duplex, ST-Duplex, FC-Duplex, and LC-Quad adapter configurations.
Q4. How many fibers can be spliced?
The CL-FSB-6 series includes a 12-fiber internal splicing module, while the CL-FSB-8 series includes an 8-fiber internal splicing module.
Q5. What is the operating temperature of the CL-FSB-12?
The CL-FSB-12 aluminum configuration supports an operating temperature range from -40°C to 80°C.
DIN-Rail Fiber Optic Splice Box
Designed for compact industrial fiber management, the C-LIGHT DIN-Rail Fiber Optic Splice Box provides CL-FSB-6, CL-FSB-8, and CL-FSB-12 configurations with fiber splicing, adapter mounting, organized cable entry, DIN-rail installation, and an aluminum option supporting -40°C to 80°C operation.
