PoE Extender for Long-Distance Ethernet Power and Data Extension
Industrial PoE Extender(1.25G) | ||
| Model | CL-IPE104-30 | CL-IPE104-90 |
Product Image |
|
|
| SPEC | 1xRJ45 PoE/PD input+4xRJ45 PoE/PSE outputs; 50~57V DC; 30W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; | 1xRJ45 PoE/PD input+4xRJ45 PoE/PSE outputs; 50~57V DC; 95W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; |
Commercial PoE Extender | ||
| Model | CL-PoE-E1 | CL-PoE-E4 |
Product Image |
|
|
| SPEC | 1xRJ45 PoE/PD input 13W +1xRJ45 PoE/PSE outputs 12.2W; 75*37*26.5mm; 0.25Kg; Plastics; Operating Temperature:0°C to 40°C; | 1xRJ45 PoE/PD input 25.5W + 4xRJ45 PoE/PSE outputs 24W; 105*93*28.5mm; 0.5Kg; Metalg; Operating Temperature:0°C to 40°C; |
The C-LIGHT PoE Extender is designed to extend Power over Ethernet transmission beyond the standard 100-meter Ethernet limit while maintaining simultaneous data and power delivery. The product family includes industrial 1.25G models with four PoE/PSE output ports and commercial models with one or four PoE output ports. Industrial configurations support 30W or 95W maximum power, 50~57VDC input, and -40°C to 75°C operation, while commercial models provide compact solutions for standard indoor deployments. The series supports IEEE 802.3af/at, plug-and-play installation, overload and short-circuit protection, and long-distance PoE extension for surveillance, industrial IoT, smart agriculture, and other remote network applications.
Key Features
PoE Extension Beyond 100m
The extender allows Ethernet data and PoE power to be extended beyond the standard 100-meter cable distance, with the product family supporting distances up to 250m or more in suitable deployments.
Simultaneous Data and Power Delivery
The device receives PoE through the PD input and forwards both Ethernet data and power through PoE/PSE output ports to connected devices.
IEEE 802.3af/at Support
The product family supports IEEE 802.3af and 802.3at PoE standards for compatibility with suitable PoE switches, injectors, and powered devices.
Single-Port and Multi-Port Options
Commercial models provide one or four PoE outputs, while industrial models provide four PoE/PSE output ports for higher device density.
Industrial 1.25G PoE Extension
Industrial models provide 1.25G Ethernet performance with 30W or 95W maximum PoE power and wide-temperature operation.
Protection and Plug-and-Play Design
Overload and short-circuit protection together with simple plug-and-play operation support reliable and straightforward PoE deployment.
Product Specifications
Industrial Models
CL-IPE104-30 and CL-IPE104-90
Commercial Models
CL-PoE-E1 and CL-PoE-E4
Industrial Network Interface
1xRJ45 PoE/PD input + 4xRJ45 PoE/PSE outputs
Industrial Power Input
50~57VDC
Industrial PoE Power
30W maximum for CL-IPE104-30 and 95W maximum for CL-IPE104-90
Industrial Dimensions
95mm x 70mm x 30mm
Industrial Weight
Approximately 0.25kg
Industrial Housing
Aluminum case
Industrial Operating Temperature
-40°C to 75°C
Commercial CL-PoE-E1
1xRJ45 PoE/PD input 13W + 1xRJ45 PoE/PSE output 12.2W
Commercial CL-PoE-E4
1xRJ45 PoE/PD input 25.5W + 4xRJ45 PoE/PSE outputs 24W
Commercial Operating Temperature
0°C to 40°C

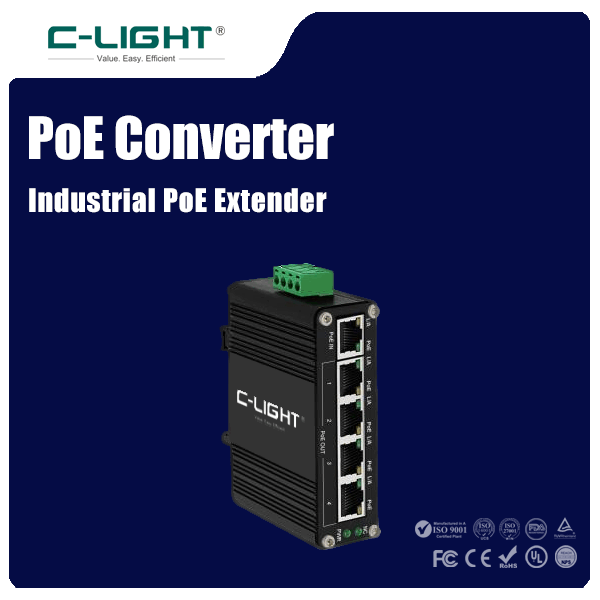

Industrial PoE Extender Series
CL-IPE104-30
The CL-IPE104-30 provides one RJ45 PoE/PD input and four RJ45 PoE/PSE outputs with 30W maximum PoE power. It uses 50~57VDC input and a 95mm x 70mm x 30mm aluminum enclosure.
CL-IPE104-90
The CL-IPE104-90 provides the same one-input and four-output architecture with a 95W maximum PoE power level for applications requiring higher powered devices.
Four-Port PoE Output
Four PoE/PSE outputs allow one incoming PoE connection to distribute power and network data to multiple downstream compatible devices.
Industrial Temperature Range
The industrial series operates from -40°C to 75°C for factory, outdoor, transportation, and other demanding environments.
Commercial PoE Extender Series
CL-PoE-E1
The CL-PoE-E1 provides one RJ45 PoE/PD input rated at 13W and one RJ45 PoE/PSE output rated at 12.2W in a compact 75mm x 37mm x 26.5mm plastic enclosure.
CL-PoE-E4
The CL-PoE-E4 provides one RJ45 PoE/PD input rated at 25.5W and four RJ45 PoE/PSE outputs rated at 24W in a 105mm x 93mm x 28.5mm metal enclosure.
Compact Indoor Deployment
The commercial models are designed for standard indoor network environments with an operating temperature range of 0°C to 40°C.
Single and Multi-Device Extension
The one-port and four-port commercial configurations can be selected according to whether one or multiple downstream PoE devices need to be connected.
PoE Extension Architecture
PoE/PD Input
The RJ45 PoE/PD input receives both network data and power from an upstream PoE switch or injector.
PoE/PSE Outputs
The RJ45 PoE/PSE output ports forward network data and PoE power to connected downstream devices.
Extended Network Distance
The extender adds another powered Ethernet segment to overcome the standard 100-meter cable limitation.
Multi-Device Connectivity
Four-port models allow one incoming PoE connection to feed multiple downstream PoE endpoints from the extender.
Power and Data Continuity
The extender maintains simultaneous Ethernet communication and power delivery across the extended network segment.
Simple Network Expansion
Plug-and-play installation provides a straightforward way to increase the physical reach of existing PoE infrastructure.
Industrial Reliability Design
Wide Temperature Operation
The industrial series supports an operating temperature range of -40°C to 75°C for demanding network environments.
Aluminum Housing
The 95mm x 70mm x 30mm aluminum enclosure provides a compact and durable platform for industrial PoE extension.
IP67 Industrial Protection
Industrial-grade configurations are designed with IP67 dust and water protection for demanding installation conditions.
EMI-Resistant Operation
The industrial design supports deployment in environments where electromagnetic interference may affect conventional copper network connections.
DIN Rail Installation
Industrial configurations support DIN rail mounting for installation in control cabinets and distributed network locations.
Protection Functions
Overload and short-circuit protection help safeguard the extender and connected PoE equipment during abnormal operating conditions.
Applications
Remote Surveillance
Extends PoE connections to IP cameras installed beyond the standard 100-meter Ethernet cable limit.
Industrial IoT
Provides extended powered Ethernet connectivity for distributed industrial IoT devices and network terminals.
Smart Agriculture
Supports remote PoE equipment such as network cameras and connected monitoring devices across larger agricultural areas.
Transportation Networks
Industrial PoE extension helps connect cameras, access points, and other Ethernet devices across transportation infrastructure.
Outdoor PoE Devices
Industrial protection and wide-temperature operation support PoE deployment for equipment installed in demanding outdoor locations.
Large-Area Network Expansion
PoE extenders provide a practical method for adding powered Ethernet endpoints where direct switch-to-device cabling exceeds the standard distance.
Why Choose the PoE Extender
The C-LIGHT PoE Extender family provides a practical way to extend both Ethernet data and PoE power beyond the standard 100-meter network segment. Industrial 1.25G models offer four PoE/PSE outputs with 30W or 95W maximum power, while commercial CL-PoE-E1 and CL-PoE-E4 models provide compact one-port or four-port extension. With IEEE 802.3af/at support, protection functions, and industrial options featuring -40°C to 75°C operation, IP67 protection, and DIN rail mounting, the series can be matched to a range of remote PoE deployment requirements.
FAQ
Q1. What is a PoE Extender?
A PoE Extender adds another powered Ethernet segment to extend data and PoE power beyond the standard 100-meter Ethernet cable distance.
Q2. How far can the PoE Extender extend a PoE connection?
The product page states that the series can extend PoE transmission to 250 meters or more in suitable network deployments.
Q3. What PoE standards are supported?
The product family supports IEEE 802.3af and IEEE 802.3at PoE standards.
Q4. How many PoE output ports are available?
The industrial CL-IPE104 series provides four PoE/PSE outputs, while the commercial series includes one-port CL-PoE-E1 and four-port CL-PoE-E4 configurations.
Q5. What is the difference between the industrial and commercial PoE Extenders?
Industrial models provide 1.25G connectivity, 30W or 95W maximum power, 50~57VDC input, and -40°C to 75°C operation, while commercial models are designed for standard indoor use at 0°C to 40°C.
PoE Extender
Designed for long-distance PoE network expansion, the C-LIGHT PoE Extender family combines extended Ethernet distance, simultaneous data and power delivery, IEEE 802.3af/at support, one-port and four-port options, and industrial configurations with high power and wide-temperature operation.
