What Is FEC in Optical Communication?

FEC, or Forward Error Correction, is an error-control technology used in optical communication systems to detect and correct certain transmission errors without requiring the receiver to request retransmission. FEC is especially important for high-speed optical networks, including 100G, 400G, 800G, and 1.6T Ethernet systems.

1. What Is FEC?

Forward Error Correction is a coding technique that adds redundant information to transmitted data. The receiver uses this additional information to detect and correct certain errors that occur during transmission.

Unlike retransmission-based error recovery, FEC allows the receiver to correct supported errors directly from the received data.

2. How Does FEC Work in Optical Communication?

The basic process is:

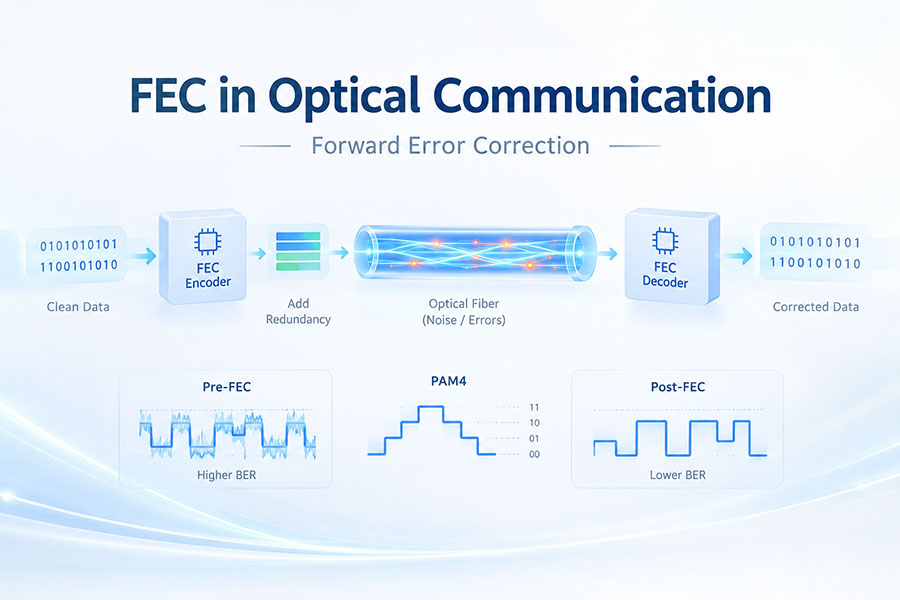

Original Data → FEC Encoder → Data with Redundancy → Optical Transmission → FEC Decoder → Recovered Data

The transmitter adds carefully calculated parity information to the original data. During transmission, noise and other impairments may introduce errors. The receiver then uses the redundant information to identify and correct errors within the capability of the FEC code.

3. Why Is FEC Important in Optical Communication?

As data rates increase, maintaining an extremely low raw bit error rate becomes more difficult. High-speed optical links can be affected by noise, optical power limitations, chromatic dispersion, crosstalk, jitter, and other physical impairments.

FEC provides additional error-correction capability and can help a system achieve the required post-FEC error performance.

4. What Is the Difference Between Pre-FEC BER and Post-FEC BER?

A link may have a measurable raw BER before FEC while still achieving a much lower error rate after successful FEC correction.

5. What Is RS-FEC?

RS-FEC refers to Reed-Solomon Forward Error Correction. Reed-Solomon codes are widely used in high-speed Ethernet systems because they can correct multiple symbol errors within the structure of the encoded data.

Different Ethernet generations and applications use different Reed-Solomon FEC configurations.

6. Why Is Reed-Solomon FEC Used in Ethernet?

Reed-Solomon coding provides strong error-correction performance with a structure well suited to high-speed digital communication.

It is especially useful for PAM4-based Ethernet because PAM4 has smaller signal-level spacing than NRZ and is therefore more sensitive to noise and signal distortion.

7. What Is the Role of FEC in PAM4?

PAM4 transmits two bits per symbol using four signal levels. This increases bandwidth efficiency but reduces the amplitude margin between adjacent levels compared with NRZ.

FEC helps compensate for the resulting increase in raw error sensitivity by correcting errors that remain after the physical-layer signal has been received.

8. Why Does PAM4 Need Strong Error Correction?

With PAM4, the four signal levels are closer together within the available signal range. Noise, jitter, inter-symbol interference, and distortion can therefore cause a received symbol to be interpreted incorrectly.

FEC provides an additional layer of protection against these transmission errors.

9. Is FEC Part of the Optical Transceiver?

FEC can be implemented in different locations depending on the optical networking architecture. It may be handled by the host Ethernet device, optical module DSP, gearbox, or another part of the communication system.

Therefore, an optical transceiver does not automatically imply that FEC is implemented inside the module.

10. What Is the Relationship Between FEC and DSP?

DSP and FEC perform different functions.

DSP primarily performs digital signal processing such as equalization, signal recovery, and compensation. FEC adds redundancy to the data and uses that redundancy at the receiver to detect and correct errors.

In some optical module architectures, FEC-related functions may be integrated into or associated with the DSP, while in others they are implemented elsewhere in the host system.

11. Does FEC Increase Data Rate?

FEC does not increase the useful payload data rate. Instead, it adds redundant bits or symbols to the transmitted stream.

Because of this overhead, the physical line rate is higher than the net payload rate in systems that use FEC.

12. What Is FEC Overhead?

FEC overhead refers to the additional data transmitted for error correction. The amount depends on the particular FEC code and system implementation.

This means that the nominal physical signaling rate includes both payload data and error-correction information.

13. Does FEC Add Latency?

Yes. FEC requires encoding at the transmitter and decoding at the receiver, which introduces processing and buffering latency.

The actual latency depends on the FEC architecture, implementation, code length, hardware design, and operating conditions.

14. How Does FEC Improve Optical Link Reliability?

FEC allows the receiver to correct a defined number of errors without retransmission. This increases the error tolerance of the communication system and can improve the effective reliability of the optical link.

However, FEC cannot correct an unlimited number of errors. If the raw error rate becomes too high, the decoder may exceed its correction capability.

15. What Happens When FEC Cannot Correct the Errors?

When the number or pattern of errors exceeds the correction capability of the FEC code, the decoder may fail to recover the original data correctly.

This can result in uncorrectable codewords, packet errors, link instability, or loss of communication depending on the system architecture.

16. How Does FEC Affect Optical Link Budget?

FEC can effectively increase the error tolerance of a communication system, which may allow the optical link to operate closer to its physical performance limits.

However, FEC does not directly increase optical transmitter power or receiver sensitivity. The achievable reach still depends on the complete optical link budget and applicable transmission standard.

17. Is FEC Required for 100G Optical Communication?

FEC requirements vary by 100G Ethernet standard and optical architecture. Some 100G interfaces use FEC as part of the Ethernet implementation, while other applications may use different configurations.

The exact requirement should be checked against the relevant Ethernet standard and equipment specification.

18. Is FEC Required for 400G Optical Communication?

FEC is widely used in modern 400G Ethernet architectures, particularly where PAM4 signaling is involved.

The specific FEC mode and implementation depend on the applicable Ethernet standard and physical-layer architecture.

19. Is FEC Required for 800G Optical Communication?

Modern 800G Ethernet systems commonly rely on FEC because of the high-speed PAM4 signaling used by many implementations.

FEC helps the system maintain the required post-correction error performance while operating at high aggregate data rates.

20. Why Is FEC Important for 1.6T Optical Communication?

As optical interfaces move toward 1.6T, electrical and optical signal margins become increasingly challenging. High-speed PAM4 channels require careful management of noise, jitter, loss, and distortion.

Stronger system-level error correction is therefore important for maintaining reliable operation at these data rates.

21. What Is FEC Gain?

FEC gain describes the improvement in error performance provided by the FEC process. It is commonly discussed in terms of the reduction in BER or the additional signal margin enabled by error correction.

Higher FEC gain can allow a communication system to tolerate a higher raw error rate while still achieving the required post-FEC performance.

22. What Is Coding Gain?

Coding gain represents the improvement in required signal-to-noise performance made possible by an error-correcting code compared with an uncoded system for a given target error performance.

In optical communication, coding gain is one way to evaluate how effectively an FEC scheme improves system robustness.

23. What Is FEC Threshold?

The FEC threshold is the maximum raw error performance range within which the FEC decoder can normally achieve the required corrected error rate.

Operating beyond this threshold can significantly increase the probability of uncorrectable errors.

24. How Is FEC Used in Optical Transceivers?

In a transceiver system, FEC may work together with the optical transmitter, receiver, DSP, and host ASIC.

A simplified architecture is:

Host ASIC → FEC Encoding → DSP/SerDes → Optical Transmitter → Fiber → Optical Receiver → DSP/SerDes → FEC Decoding → Host ASIC

The exact signal path varies by transceiver and Ethernet architecture.

25. What Is the Difference Between FEC and Retransmission?

26. What Is the Difference Between Hard-Decision and Soft-Decision FEC?

Hard-decision FEC makes decoding decisions from discrete received symbols or bits. Soft-decision FEC uses additional information about the confidence or likelihood of the received values.

Soft-decision approaches can provide stronger coding performance, but they generally require more complex processing and can consume more power.

27. How Does FEC Affect Optical Module Power?

FEC processing requires additional digital computation. If FEC is implemented within the optical module DSP, this processing contributes to module power consumption.

If FEC is implemented in the host ASIC or another system component, the module itself may not carry the same FEC processing load.

28. Can LPO Use FEC?

Yes. LPO can operate in systems that use FEC. Removing the traditional DSP from an optical module does not eliminate FEC at the Ethernet system level.

In an LPO architecture, FEC may be handled by the host system while the optical module focuses on linear signal transmission and reception.

29. Can CPO Use FEC?

Yes. CPO systems can also use FEC as part of the host networking architecture.

Because CPO moves optical conversion closer to the switch ASIC, the optical engine and host ASIC can work together while FEC remains part of the broader data communication system.

30. How Is FEC Tested?

FEC performance can be evaluated using measurements such as pre-FEC BER, post-FEC BER, corrected codewords, uncorrectable codewords, and FEC margin.

Testing should be performed under appropriate stress conditions to verify that the communication system maintains the required error performance.

31. Why Is FEC Important for AI Data Centers?

AI data centers rely on large numbers of high-speed optical connections between GPUs, switches, servers, and other networking equipment. A small error rate at each individual link can become significant across a large-scale network.

FEC helps maintain reliable data transmission while supporting the high-speed PAM4 interfaces used in modern AI networking.

32. What Are the Main Advantages of FEC?

The main advantages of FEC include:

• Correction of supported transmission errors

• Improved link reliability

• Reduced dependence on retransmission

• Better tolerance of physical-layer impairments

• Support for high-speed PAM4 communication

• Improved overall system error performance

33. What Are the Main Limitations of FEC?

FEC also introduces trade-offs:

• Additional bandwidth overhead

• Encoding and decoding latency

• Processing complexity

• Additional power consumption in some implementations

• Limited correction capability

FEC therefore complements good optical and electrical design rather than replacing it.

34. FAQ

35. Summary

FEC is a fundamental error-control technology in modern optical communication. By adding redundant information to transmitted data, it allows the receiver to correct certain errors and improve link reliability. FEC is particularly important for PAM4-based 400G, 800G, and 1.6T systems, where signal margins are tighter and raw error performance is more challenging to maintain.
