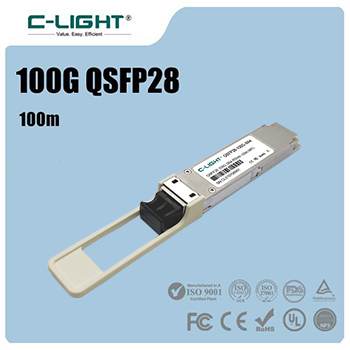

QSFP28 100G SR4 is an optical transceiver operating at 850nm wavelength, delivering 100Gbps Ethernet over multimode fiber (OM3/OM4) with a reach of up to 100 meters. Utilizing an MPO connector and 4×25G NRZ parallel channels, it is engineered for high-bandwidth applications including data center interconnects and switch-to-switch communication.
-40℃~85℃ 丨 TX>-3dBm 丨 RX < -8dBm 丨 < 2.5w丨Factory warranty |
CL100GQSFPSR4 |
●MTP/MPO optical connector ●QSFP28 MSA compliant ●Four independent full-duplex channels ●103. 125Gbps aggregate bit rate ●Digital Diagnostic Monitoring ●Link length of 70m over OM3 Multi-mode Fiber or 100m over OM4 Multi-mode Fiber ●Single +3.3V power supply ●Operating case temperature from -40℃~85℃ ●Low power consumption < 2.5W ●RoHS-6 compliant |
Specification | |||
| Number | CL100GQSFPSR4 | Vendor | C-LIGHT |
| Form Factor | QSFP28 | Data Rate Max | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 850nm | Distance | 70m@OM3 100m@OM4 |
| Connector | MTP/MPO-12 | Media | MMF |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | >-3dBm | Receiver Sensitivity | < -8dbm |
| Power Budget | 5dB | Receiver Overload | > 4.5dBm |
| Power Consumption | ≤2.5W | Extinction Ratio | >4dB |
| DDM/DOM | Supported | Industrial Temperature Range | -40 to 85°C |
| CDR | TX & RX Built-in CDR | FEC Function | No |
| Protocols | QSFP28 MSA and IEEE 802.3bm | Warranty | 3 Years |

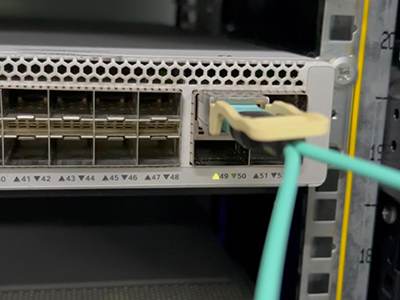

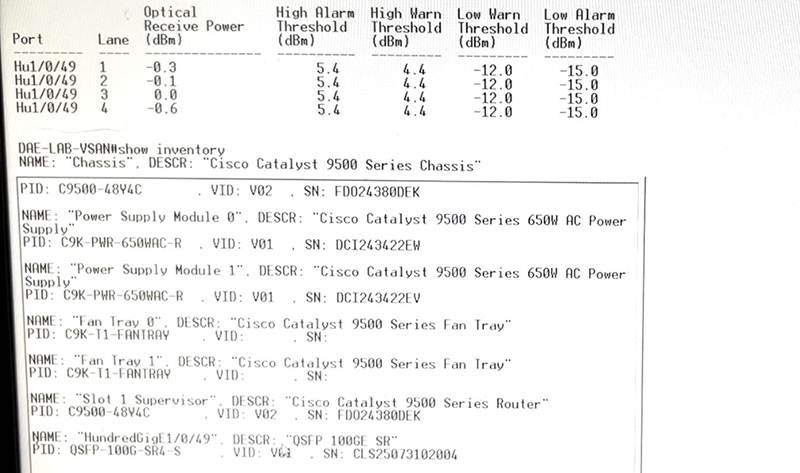

| System Test | |
|
|
| |
| Test video | ||
| Related Products | |||
| Number | CL100GQSFPLR4 | CL100GQSFPER4 | |
| Wavelength | 850nm | LAN WDM 1310nm | LAN WDM 1310nm |
| Connector | MTP/MPO-12 | LC | LC |
Cable Distance (Max.) | 100m | 10km | 40km |
Data Rate | 103.125Gbps | 103.125Gbps | 103.125Gbps |
Transmitter Type | CSEL 850nm | EML | EML |
TX Power | > -3dBm | > -3dBm | -2dBm~5dBm |
Receiver Sensitivity | < -8dbm | < -8dBm | < -21dBm |
| Power Consumption | ≤ 2.5W | ≤ 3.5W | ≤ 5.5W |

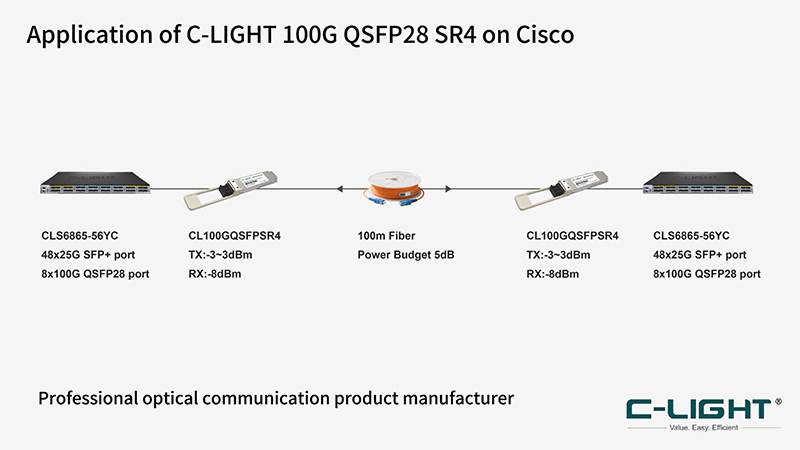

| Application Graph |
 |
>
>
>
>
>
>
>
>
