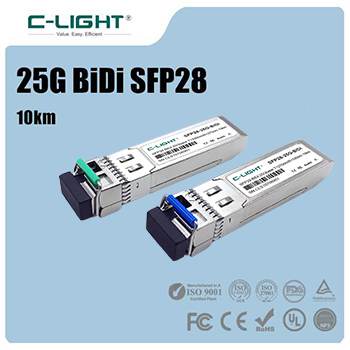

25G 1270nm/1330nm BiDi LC SFP28 transceiver is a high-performance, hot-pluggable module designed for 25G Ethernet and 5G wireless infrastructure. Utilizing advanced Bi-Directional (BiDi) technology, it transmits and receives data over a single strand of single-mode fiber, achieving distances up to 10km by employing 1270nm and 1330nm wavelengths. This SFP28 form factor module is the ideal solution for maximizing existing fiber capacity in data center interconnects (DCI) and 5G front-haul applications, offering a cost-effective and fiber-efficient upgrade path while ensuring low power consumption and full digital diagnostics monitoring (DDM) capabilities.
25G 1270nm/1330nm BiDi丨 10KM LC simplex 丨Factory warranty 丨 SFP28 |
CLSFP25GBD2710D / CLSFP25GBD3310D |
●Supports 25GBASE (25Gb/s); ●Lane bit rate 25.78 Gb/s; ●Up to 10km transmission on SMF; ●WDM TX1270/RX1330nm DFB/PIN laser ●High speed I/O electrical interface (25GAUI); ●I2C interface with integrated Digital Diagnostic monitoring; ●SFP28 MSA package with simplex LC connector; ●Single +3.3V power supply; Maximum power consumption 1.2 W; ●Operating case temperature: 0~70 °C ●Compliant to IEEE 802.3cc Draft3.0, SFF-8402 and SFF-8432; |
Specification | |||
Part Number | CLSFP25GBD2710D CLSFP25GBD3310D | Vendor | C-LIGHT |
Form Factor | SFP28 | Data Rate | 25Gbps |
Wavelength | 1270nm/1330nm | Distance | 10km |
Connector | Simplex LC | Media | SMF |
Transmitter Type | DFB BIDI | Receiver Type | PIN |
TX Power | -2~3dBm | Receiver Sensitivity | < -16dBm |
Power Budget | 14dB | Receiver Overload | ＞2dBm |
Typical Power Consumption | ≤1.2W | Extinction Ratio | >3.5dB |

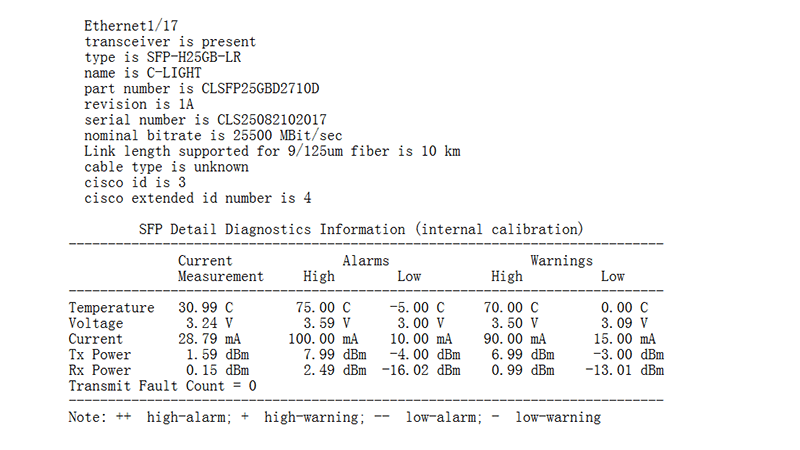

DDM/DOM | Supported | Ind.Temperature Range | 0 to 70°C |
Protocols | IEEE 802.3cc Draft3.0, SFF-8402 and SFF-8432; | Warranty | 3 Years |
| Specification | |
 |  |
 | |

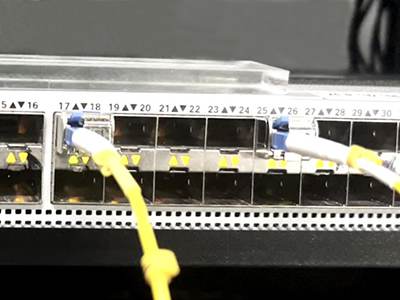

Test video | ||||
Related Products | ||
| Part Number | CLSP25GBD2710D CLSP25GBD3310D | CLSP25GBD2720D CLSP25GBD3320D |
| Center Wavelength | 1270nm/1330nm | 1270nm/1330nm |
| Connector | LC Simplex | LC Simplex |
| Cable Distance (Max.) | 10km | 20km |
| Modulation | DFB | DFB |
| Power Consumption | SMF | SMF |
| TX Power | -2~3dBm | 1~4dBm |
| Receiver Sensitivity | < -16dBm | < -16dBm |
| Receiver Overloa | >-2dBm | >-2dBm |
| Extinction Ratio | >3.5dB | >3.5dB |

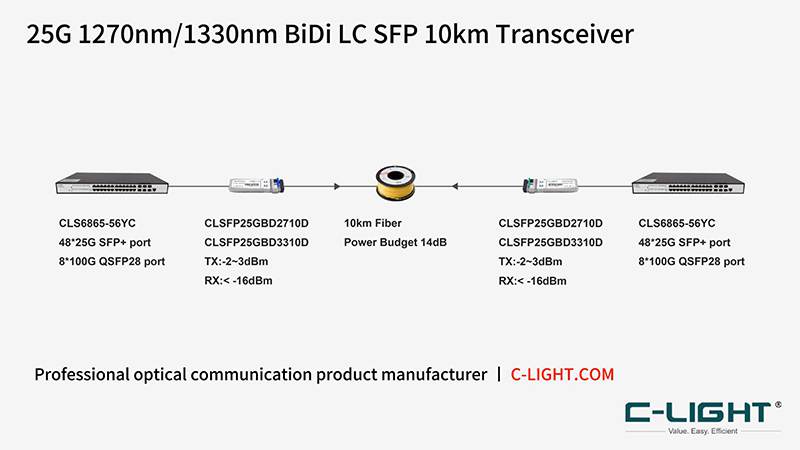

Application Graph |
>
>
>
>
>
>
>
>
