-40℃~85℃丨1G/2.5G/5G/10G Auto Adapting CAT6+ Rj45 100m 丨Factory warranty |

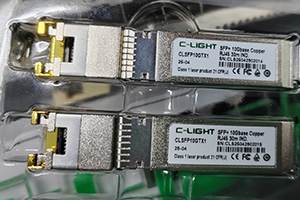

CLSFP10GTX2I |
●1G/2.5G/5G/10Gbps copper data links; ●RJ45 Max link distance 100 meters using CAT 6a/7/8 cable ●Fully metallic enclosure for low EMI ●Compact RJ-45 Connector assembly ●Hot-pluggable SFP footprint ●Low power dissipation ●Extended case temperature: -40℃ to 85℃ ●RoHS compliant and Lead Free ●Access to physical layer IC via 2-wire serial bus |
| Specification | |||
| Part Number | CLSFP10GTX2I | Vendor | C-LIGHT |
| Form Factor | SFP+ | Data Rate | 10/5/2.5/1.25Gbps |
| Power Consumption | ≤1.5W | Cable Distance | Max 100m@Cat6a/Cat7 or Better |
| Connector | RJ-45 | Cable Type | Copper |
| Special Features | RX_LOS | DDM/DOM | Temp. Volt Implemented |
| EMC (Electro Magnetic Compatibility) | Supported | MTBF | 2,000,000 Hours |
| Commercial Temperature Range | -40°C to 85°C | Protocols | IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431 |

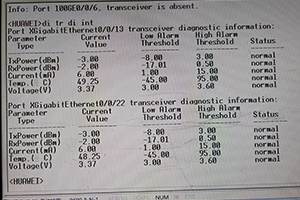

| System Test | ||
 |  |  |
| Test video |
| Related Products | ||||
| Part Number | CLSFP10GTX2I | CLSFP10GTX1 | CLSFPGETX3I | CLSFPGETX4 |
| Data Rate | 10/5/2.5/1.25Gbps | 1.25Gbps | 1.25Gbps/100Mbps | |
| Wavelength | Copper | |||
| Cable Distance (Max) | 100m | 30m | 100m | 100m |
| Cable Type | Cat6a/Cat7 or Better | Cat5 or Better | ||
| Power Consumption | 1.5W | 2.3W | 0.5W | 1W |
| Operating Temperature | -40°C to 85°C | 0°C to 70°C | -40°C to 85°C | 0°C to 70°C |

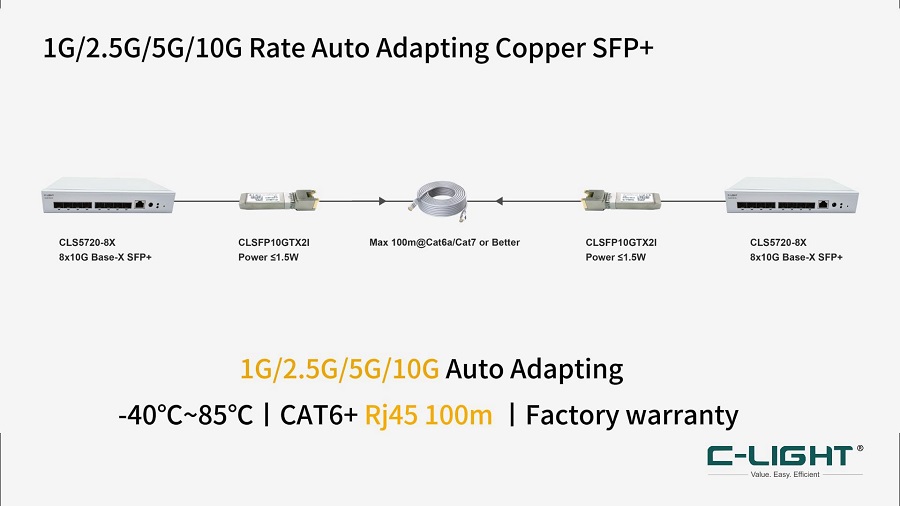

| Application Graph |
