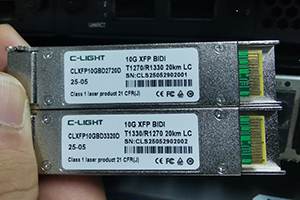

10G XFP BIDI 20km transceiver is a hot-pluggable, single-fiber bidirectional optical module designed for 10Gbps data transmission over 20km via single-mode fiber.
10G XFP BIDI 20km transceiver utilizes wavelength-division duplexing technology with dual wavelengths Tx1330nm/Rx1270nm or Tx1270nm/Rx1330nm to enable simultaneous bidirectional communication on a single fiber strand, reducing cabling costs and infrastructure complexity.
10G 1270nm/1330nm BiDi丨 20km LC simplex丨XFP |
CLXFP10GBD2720D/CLXFP10GBD3320D |
l 9.95Gbps to 11.1Gbps data links l 20km with 9/125µm SMF *1 l WDM 1270nm/1330nm l Simplex LC Connector l Hot-pluggable XFP footprint l Single 3. 3V power supply l Operating temperature: 0℃ to 70℃ l RoHS l Digital Diagnostic Monitor (DDM) l Power Consumption :1.5W |
Specification | |||
| Number | CLXFP10GBD2720D CLXFP10GBD3320D | Vendor | C-LIGHT |
| Form Factor | XFP | Data Rate Max | 9.95Gbps to 11.1Gbps |
| Wavelength | 1270nm/1330nm | Distance | 20km |
| Connector | LC | Optical Components | DFB BOSA |
| Media | SMF | DOM Support | YES |
| TX Power | -5~5dBm | Receiver Sensitivity | < -14dBm |

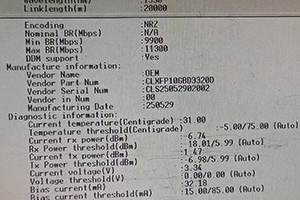

| System Test | ||
 |  |  |
| Test video | ||
| Related Products | |||
| Number | CLXFP10GBD2720D CLXFP10GBD3320D | CLXFP10GBD2740D CLXFP10GBD3340D | CLXFP10GBD4980D CLXFP10GBD5580D |
| Center Wavelength | 1270nm/1330nm | 1270nm/1330nm | 1490nm/1550nm |
| Connector | LC Simplex | LC Simplex | LC Simplex |
| Cable Distance (Max.) | 20km | 40km | 80km |
| Modulation | XFP BiDi | XFP BiDi | XFP BiDi |
| Power Consumption | 1.5W | 1.5W | 1.5W |
| Transmitter Type | DFB BOSA | DFB BOSA | EML BOSA |
| TX Power | >-5dBm | >-1dBm | >-1dBm |
| Receiver Sensitivity | < -14dbm | < -15dbm | < -24dbm |

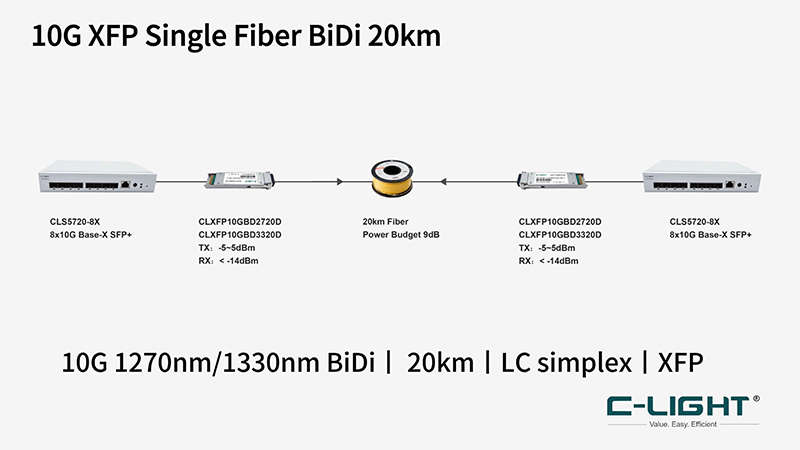

| Application Graph |
 |
