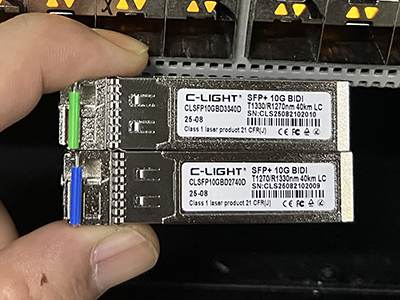

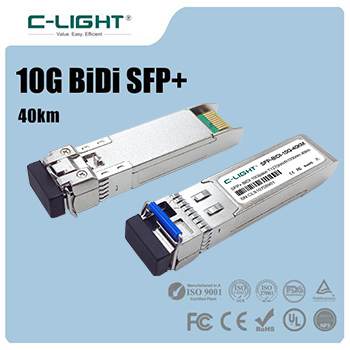

10G 1270nm/1330nm BiDi LC SFP 40km transceiver supports long-range data transmission up to 40km using single-fiber bidirectional technology. It is designed for high-efficiency connectivity in enterprise networks and data centers.
10G 1270nm/1330nm BiDi丨 40KM LC simplex 丨Factory warranty 丨 SFP+ |
CLSFP10GBD2740D/ CLSFP10GBD3324D |
●Up to 10Gbps data links ●40km with 9/125µm SMF ●WDM TX1270nm/RX1330nm, DFB/PIN laser ●Simplex LC Connector ●Hot-pluggable SFP+ footprint ●Single 3. 3V power supply ●Operating temperature: 0℃ to 70℃ ●RoHS ●Digital Diagnostic Monitor (DDM) |
Specification | |||
Part Number | CLSFP10GBD2740D CLSFP10GBD3340D | Vendor | C-LIGHT |
Form Factor | SFP+ | Data Rate | 10.31Gbps |
Wavelength | 1270nm/1330nm | Distance | 40km |
Connector | Simplex LC | Media | SMF |
Transmitter Type | DFB BIDI | Receiver Type | PIN |
TX Power | 0~5dBm | Receiver Sensitivity | < -16dBm |
Power Budget | 16dB | Receiver Overload | ＞3dBm |
Typical Power Consumption | ≤1.5W | Extinction Ratio | >3.5dB |

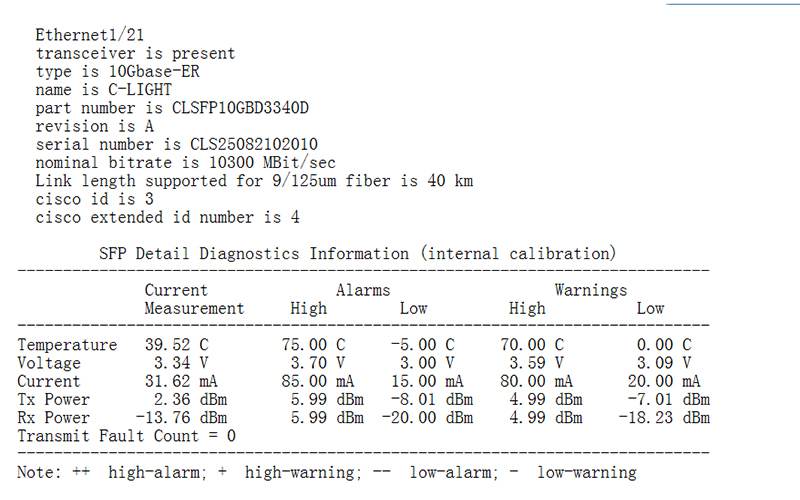

DDM/DOM | Supported | Ind.Temperature Range | 0 to 70°C |
Protocols | IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 3 Years |
| Specification | |
 |  |
| |

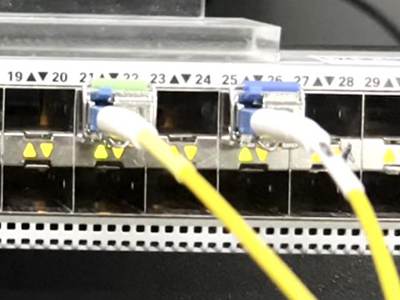

Test video | ||||
Related Products | ||
| Part Number | CLSFP10GBD2740D CLSFP10GBD3340D | CLSP10GBD2720D CLSP10GBD3320D |
| Center Wavelength | 1270nm/1330nm | 1270nm/1330nm |
| Connector | LC Simplex | LC Simplex |
| Cable Distance (Max.) | 40km | 20km |
| Modulation | DFB | DFB |
| Power Consumption | SMF | SMF |
| TX Power | 0~5dBm | -4~-1dBm |
| Receiver Sensitivity | < -16dBm | < -14dBm |
| Receiver Overloa | >3dBm | >3dBm |
| Extinction Ratio | >3.5dB | >3.5dB |

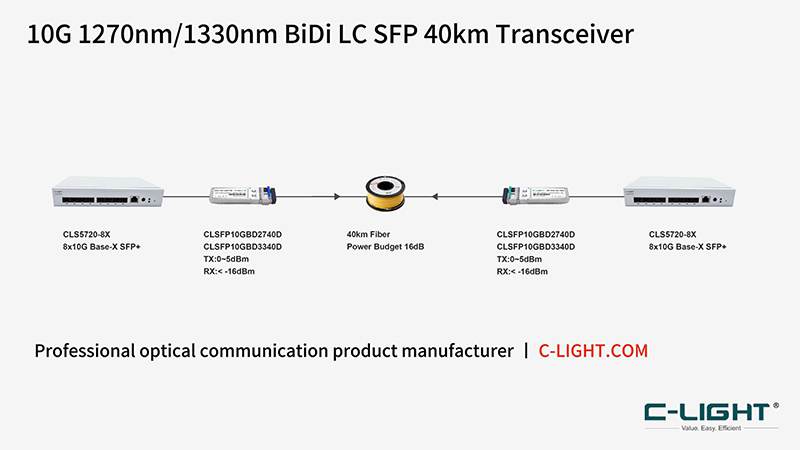

Application Graph |
