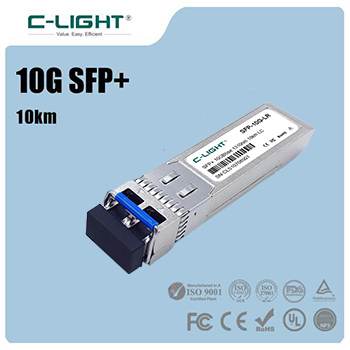

High-performance 10G 1310nm LC SFP+ transceiver with 10km range, ideal for high-speed data center and enterprise network connections.
10G 1310nm 丨 10KM LC simplex 丨Factory warranty 丨 SFP+ |
CLSFP1310GLR |
●Up to 10Gbps data links ●10km with 9/125µm SMF ●1310nm DFB laser ●Duplex LC Connector ●Hot-pluggable SFP+ footprint ●Single 3. 3V power supply ●Operating temperature: 0℃ to 70℃ ●RoHS ●Digital Diagnostic Monitor compatible ●Power Consumption < 0.8W |
Specification | |||
Part Number | CLSFP1310GLR | Vendor | C-LIGHT |
Form Factor | SFP+ | Data Rate | 10Gbps |
Wavelength | 1310nm | Distance | 10km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -4~1dBm | Receiver Sensitivity | < -14dBm |
Power Budget | 10dB | Receiver Overload | ＞0.5dBm |
Typical Power Consumption | ≤0.8W | Extinction Ratio | >3.5dB |

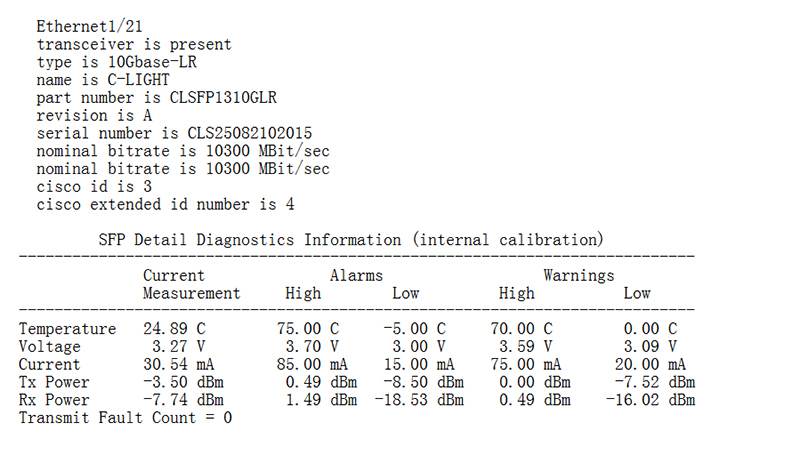

DDM/DOM | Supported | Ind.Temperature Range | 0 to 70°C |
Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 3 Years |
| Specification | |
 |  |
| |

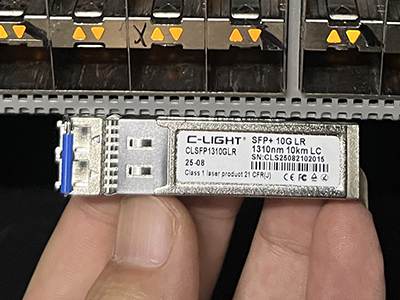

Test video | ||||
Related Products | ||
| Part Number | CLSFP1310GLR | CLSFP1550GZR |
| Center Wavelength | 1310nm | 1550nm |
| Connector | Duplex LC | Duplex LC |
| Cable Distance (Max.) | 10km | 60km |
| Modulation | DFB | DFB |
| Power Consumption | SMF | SMF |
| TX Power | -4~-1dBm | 0~5dBm |
| Receiver Sensitivity | < -14dBm | < -25dBm |
| Receiver Overloa | >0.5dBm | >-7dBm |
| Extinction Ratio | >3.5dB | >8.2dB |

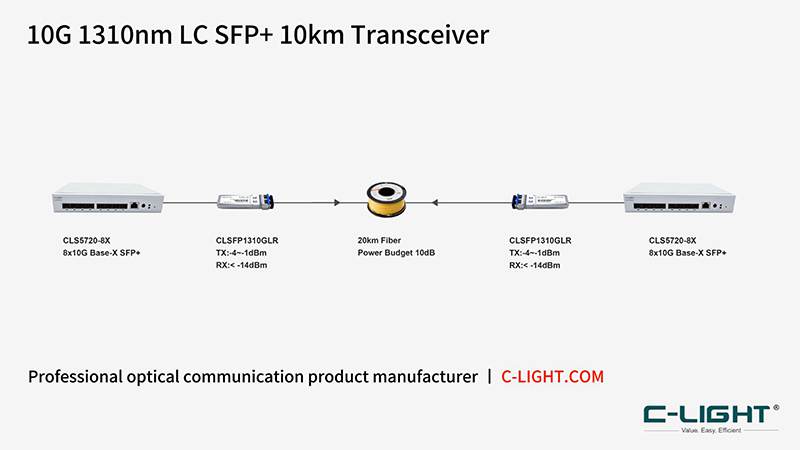

Application Graph |
>
>
>
>
>
>
>
>
