1.6T Optical Module Complete Guide

1.6T optical modules are emerging as a next step in high-speed data center connectivity as AI clusters, high-performance computing, and large-scale Ethernet networks require greater bandwidth between GPUs, switches, and network fabrics. Compared with 800G optical modules, 1.6T solutions increase aggregate bandwidth while creating new requirements for electrical interfaces, optical engines, signal integrity, thermal management, and network architecture.

This guide explains the architecture, transmission technologies, form factors, optical configurations, application scenarios, deployment considerations, and future development of 1.6T optical modules.

1. What Is a 1.6T Optical Module?

A 1.6T optical module is a high-speed optical transceiver designed to provide an aggregate data rate of approximately 1.6 Tb/s. It converts high-speed electrical signals from network equipment into optical signals for transmission over fiber and converts incoming optical signals back into electrical signals at the receiving end.

The move toward 1.6T is closely related to the increasing bandwidth requirements of AI and HPC networks. As GPU clusters become larger and distributed computing workloads generate more traffic, network links must provide higher throughput while maintaining acceptable power consumption, latency, and transmission performance.

1.6T should not be viewed simply as an optical module with twice the bandwidth of 800G. Increasing the aggregate data rate requires coordinated improvements across electrical signaling, optical components, DSP technology, thermal design, packaging, and fiber connectivity.

2. Why 1.6T Optical Modules Are Important

AI workloads place substantial demands on the communication network connecting compute accelerators and switching infrastructure. Training and inference systems can generate large volumes of east-west traffic, making the optical network an important part of overall system performance.

Higher-speed optical modules can increase the bandwidth available per network port and help network designers scale switching capacity without increasing the number of physical connections at the same rate.

• Higher bandwidth: Up to 1.6 Tb/s aggregate throughput supports next-generation high-capacity network connections.

• Higher port density: More bandwidth can be delivered through each optical port.

• AI networking: Suitable for high-bandwidth connections between AI accelerators, switches, and network fabrics.

• Data center scalability: Helps support larger clusters and higher-capacity switching architectures.

• Migration from 800G: Provides a pathway toward higher-speed optical connectivity as network platforms evolve.

3. How 1.6T Optical Modules Work

A 1.6T optical module typically contains high-speed electrical interfaces, transmit and receive optical components, signal processing circuitry, control and monitoring functions, and thermal management structures.

On the transmit side, electrical signals from the host system are processed and converted into optical signals. The optical signals are then transmitted through multimode or single-mode fiber depending on the module design.

On the receive side, optical signals are detected by photodetectors and converted back into electrical signals for processing by the host system.

The overall architecture can be simplified into four major stages:

• Electrical interface: Receives high-speed data from the host system.

• Signal processing: Performs functions such as signal conditioning and, depending on the implementation, DSP-based processing.

• Optical conversion: Converts electrical signals into optical signals and optical signals back into electrical signals.

• Fiber interface: Connects the module to the optical cabling infrastructure.

4. 1.6T Optical Module Transmission Technology

One of the key challenges in 1.6T development is achieving sufficient aggregate bandwidth while maintaining signal integrity and manageable power consumption.

4.1 PAM4 Signaling

PAM4 is an important electrical and optical signaling technology for high-speed Ethernet because it carries two bits per symbol by using four signal levels. It has been widely adopted in modern 200G, 400G, 800G and emerging higher-speed optical architectures.

At 1.6T, PAM4 remains relevant because increasing the number of parallel electrical and optical lanes can be combined with higher lane rates to achieve the required aggregate bandwidth.

4.2 Higher Lane Rates

The transition from 800G to 1.6T involves more than simply doubling the number of lanes. Higher electrical lane rates create additional challenges related to insertion loss, return loss, crosstalk, jitter, connector performance, PCB design, and package-level signal integrity.

These factors make high-speed electrical design one of the most important areas in the development of 1.6T optical platforms.

5. Common 1.6T Optical Module Architectures

Different 1.6T optical architectures can be developed for different distances and network requirements. Short-reach connections generally prioritize power efficiency and cost, while longer-reach applications place greater emphasis on optical budget, dispersion, wavelength management, and forward error correction.

5.1 1.6T Short-Reach Optical Modules

Short-reach configurations are primarily intended for connections inside data centers and AI computing environments where optical distances are relatively limited.

These solutions can use parallel optical transmission and are particularly relevant to high-density switch-to-switch and accelerator-to-switch connectivity.

5.2 1.6T DR-Type Configurations

DR architectures are designed around single-mode fiber and parallel optical lanes. A 1.6T implementation can use multiple 800G-class optical interfaces within one module architecture, depending on the specific design.

For example, a 1.6T OSFP 2DR4 configuration can combine two DR4 optical interfaces into a single high-capacity module architecture. This type of design is relevant to high-bandwidth data center interconnects where single-mode fiber is preferred.

5.3 1.6T Long-Reach Solutions

Longer-reach 1.6T optical technologies require more advanced optical engineering. Factors such as optical power, receiver sensitivity, chromatic dispersion, fiber loss, wavelength characteristics, and FEC become increasingly important as transmission distance increases.

6. 1.6T OSFP Optical Modules

OSFP is one of the major form factors associated with high-speed optical networking. Its larger thermal and mechanical envelope compared with some smaller form factors can be advantageous for high-power, high-bandwidth optical applications.

1.6T OSFP modules are particularly relevant to AI and high-performance networking platforms where high port bandwidth and thermal management are major design considerations.

A typical 1.6T OSFP architecture may integrate multiple optical engines or optical channels within a single module. The exact implementation depends on the optical reach, lane architecture, connector configuration, host electrical interface, and target networking standard.

7. 1.6T Optical Module vs. 800G Optical Module

800G optical modules have become an important building block for high-speed AI and data center networks. The transition to 1.6T represents another increase in bandwidth density.

The practical choice between 800G and 1.6T depends on switch port capability, network architecture, required bandwidth, power budget, fiber infrastructure, and deployment economics. 1.6T is not automatically the best choice for every network.

8. Optical Components in 1.6T Modules

The optical engine is one of the most important parts of a 1.6T transceiver. Its design directly affects transmission performance, power consumption, thermal characteristics, and reliability.

8.1 Lasers

Depending on the transmission architecture, 1.6T modules may use different laser technologies and wavelength configurations. The selection depends on reach, optical power requirements, modulation scheme, temperature range, and overall module architecture.

8.2 Photodetectors

Photodetectors convert received optical signals into electrical signals. Their bandwidth, sensitivity, responsivity, and operating characteristics influence the overall receiver performance.

8.3 Optical Engines

Higher-speed modules place greater emphasis on optical engine integration. Efficient packaging can reduce interconnect losses and help control the electrical and thermal challenges associated with high-speed operation.

9. Thermal Management for 1.6T Optical Modules

Thermal management becomes increasingly important as module bandwidth increases. Higher-speed components and signal-processing circuits can increase the module's power consumption and heat generation.

Traditional air cooling can remain suitable for some deployments, but higher-power optical modules may require more advanced thermal solutions depending on system design.

• Improved heat spreader design

• Optimized optical and electrical component placement

• Improved host-side airflow

• Advanced thermal interface materials

• Liquid-cooling-compatible optical module designs for high-density systems

Thermal design cannot be separated from optical and electrical design. A module operating at a high temperature may experience changes in laser characteristics, receiver performance, signal quality, and overall reliability.

10. Signal Integrity Challenges

At 1.6T, signal integrity becomes a system-level engineering problem. The electrical path includes the switch ASIC, package, PCB, connector, module cage, host connector, and optical module electronics.

Important parameters include insertion loss, return loss, crosstalk, jitter, eye opening, and overall channel loss.

Testing and optimization therefore need to cover the complete high-speed electrical path rather than focusing only on the optical transceiver itself.

11. Fiber Connectivity for 1.6T

Fiber infrastructure is another important consideration. Parallel single-mode fiber configurations can provide the optical lanes required by high-capacity modules, while multimode solutions may be suitable for certain short-reach applications.

MPO/MTP-based connectivity is particularly important for parallel optical transmission because multiple fiber channels can be integrated into a compact connector interface.

Proper polarity, fiber type, connector quality, insertion loss, return loss, and link budget should all be considered when deploying 1.6T optical links.

12. Applications of 1.6T Optical Modules

1.6T optical modules are primarily associated with high-bandwidth networking environments where 800G-class connectivity may eventually become insufficient for individual links.

• AI data centers: High-bandwidth connections between AI accelerators and network switches.

• High-performance computing: High-throughput communication between computing and networking systems.

• Data center Ethernet: High-capacity switch-to-switch and spine-leaf network connections.

• Large-scale cloud infrastructure: Scalable optical connectivity for high-density computing environments.

• Next-generation network fabrics: High-bandwidth links for future switching architectures.

13. 1.6T Optical Modules for AI Data Centers

AI infrastructure is one of the major drivers behind higher-speed optical networking. As accelerator counts increase, the network must provide sufficient bandwidth to prevent communication links from becoming a bottleneck.

In a large AI cluster, optical connections may be required throughout the network fabric, including accelerator-to-switch, switch-to-switch, and higher-level network connections.

The transition from 400G to 800G and eventually to 1.6T can increase bandwidth per port and help network architects build higher-capacity fabrics with greater bandwidth density.

14. C-LIGHT 1.6T OSFP Optical Module

C-LIGHT provides high-speed optical transceiver solutions for next-generation data center and AI networking applications. Its 1.6T OSFP product portfolio includes high-bandwidth parallel optical configurations designed for high-capacity network environments.

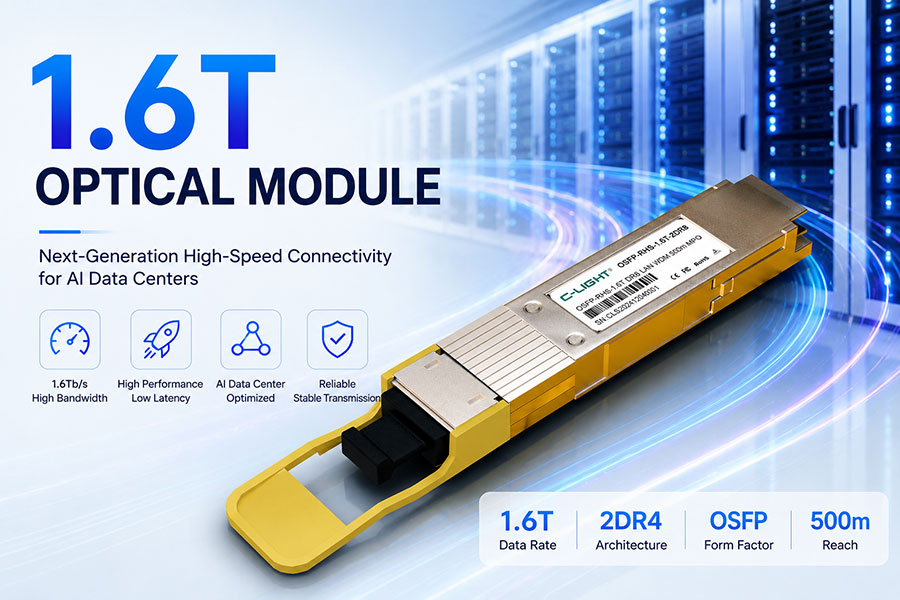

The C-LIGHT 1.6T OSFP 2DR4-RHS transceiver is designed around a 1.6T 2DR4 architecture and supports a 500 m transmission distance over single-mode fiber according to the referenced product specification.

The module uses an OSFP form factor and an MPO optical interface, providing a high-density connection approach for next-generation optical networks.

For deployment, system designers should evaluate the specific module specification together with the switch platform, host interface, fiber infrastructure, thermal conditions, and required optical link budget.

15. Key Considerations When Selecting a 1.6T Optical Module

Choosing a 1.6T optical module requires more than comparing the headline data rate. The module must be compatible with the complete network system.

• Form factor: Confirm OSFP or another supported form factor.

• Optical reach: Select the appropriate architecture for the required transmission distance.

• Fiber type: Check whether the module requires single-mode or multimode fiber.

• Connector: Verify MPO/MTP or other optical interface requirements.

• Host compatibility: Confirm electrical interface and switch platform compatibility.

• Power consumption: Ensure the module fits within the system's power budget.

• Thermal environment: Evaluate airflow, module temperature, and rack-level cooling.

• Management: Check monitoring and digital diagnostic capabilities where required.

• Interoperability: Validate compatibility between the optical module, switch, fiber, and network architecture.

16. Future Development of 1.6T Optical Modules

The development of 1.6T optical modules is likely to focus on increasing bandwidth while controlling power consumption, thermal output, and manufacturing complexity.

Several technologies are expected to influence the next stage of optical networking, including higher-speed electrical interfaces, advanced optical engines, co-packaged optics, linear-drive optical technologies, improved DSP architectures, and more efficient thermal solutions.

Co-packaged optics may become increasingly relevant in systems where the electrical distance between the switch ASIC and optical engine needs to be minimized. At the same time, pluggable 1.6T modules can remain attractive because they provide serviceability and modular deployment advantages.

17. 1.6T Optical Module Deployment Challenges

Although 1.6T provides substantial bandwidth, deployment introduces several challenges.

First, the host network equipment must support the required electrical and optical interfaces. Second, the power and thermal budget must be sufficient for high-density deployments. Third, the optical cabling system must provide the correct fiber type, polarity, connector configuration, and link performance.

Finally, interoperability testing becomes increasingly important as high-speed optical links become more sensitive to differences between host systems, modules, cables, and optical components.

18. Conclusion

1.6T optical modules represent an important development in the evolution of high-speed optical connectivity. Their primary value is not simply a higher data-rate specification, but the ability to increase network bandwidth density for AI, HPC, and large-scale data center infrastructure.

The transition to 1.6T requires coordinated improvements in electrical signaling, optical engines, packaging, signal integrity, thermal management, and fiber connectivity. OSFP-based architectures are particularly relevant to high-bandwidth applications where thermal and mechanical considerations are important.

As AI clusters and data center networks continue to scale, 1.6T optical modules are positioned to become an important technology for next-generation network fabrics, while 400G and 800G will continue to serve a wide range of existing and emerging deployments.

19.Frequently Asked Questions About 1.6T Optical Modules

20.Summary

1.6T optical modules extend the bandwidth capabilities of modern data center optical networks and provide a path toward higher-density AI and HPC connectivity. Their development involves advances in optical technology, electrical signaling, packaging, thermal management, and high-speed network architecture.

For organizations planning next-generation optical networks, evaluating 1.6T alongside existing 400G and 800G solutions can help determine the most appropriate technology for different network layers, distances, and deployment requirements.
