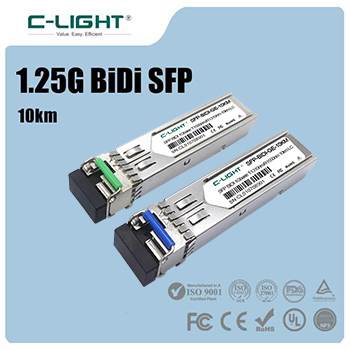

1.25G BiDi LC 10km SFP Transceiver丨C-LIGHT

1.25G BiDi SFP transceiver utilizes 1310nm/1550nm wavelengths over single-mode fiber for 10km bidirectional data transmission in Gigabit Ethernet applications.

-40℃~85℃ 丨 1.25G 1310nm/1550nm BiDI 丨

TX :-2~-6dBm丨RX:< -23dBm 丨< 1.5w丨Factory warranty

CLSFPGEBD131510DI/ CLSFPGEBD151310DI

1.25G-BIDI-10KM

●Up to 1.25Gbps data links

●10Km with 9/125µm SMF

●1310nm FP /1550nm DFB laser/ PIN receiver

●Simplex LC Connector

●Hot-pluggable SFP footprint

●Single 3. 3V power supply

●Operating temperature: -40℃~85℃

●RoHS

Specification
Number	CLSFPGEBD131510DI CLSFPGEBD151310DI	Vendor	C-LIGHT
Form Factor	SFP	Data Rate Max	1.25Gbps
Wavelength	1310nm/1550nm	Distance	10km
Connector	BIDI LC	Media	SMF
Transmitter Type	DFB BIDI	Receiver Type	PIN
TX Power	-2dBm~6dBm	Receiver Sensitivity	< -23dbm
Power Budget	21dBm	Receiver Overload	>1dBm
Power Consumption	≤1.5W	Extinction Ratio	>9dB
DDM/DOM	Supported	Industrial Temperature Range	-40°C to 85°C
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA Compliant	Warranty	3 Years

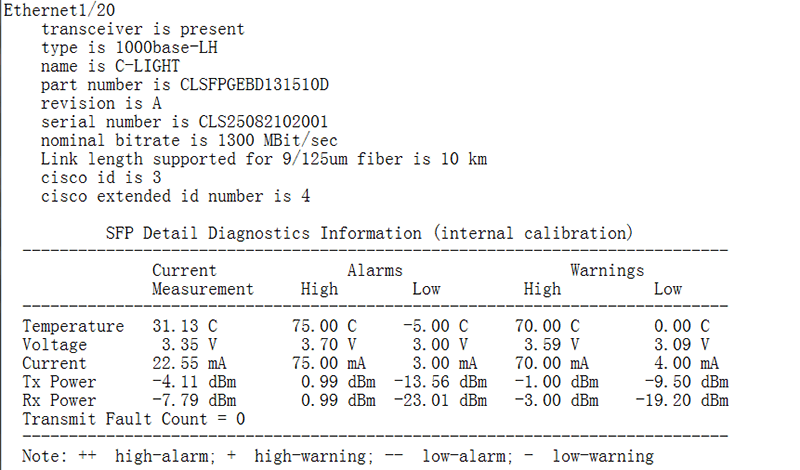

System Test

Test video

Related Products
Number	CLSFPGEBD131510DI CLSFPGEBD151310DI	CLSFPGEBD131520DI CLSFPGEBD151320DI
Wavelength	1310nm/1550nm	1310nm/1550nm
Connector	Simplex LC	Simplex LC
Cable Distance (Max.)	10km	20Km
Data Rate	1.25Gbps	1.25Gbps
Transmitter Type	DFB BIDI	DFB BIDI
TX Power	-2~-6dBm	-9~-3dBm
Receiver Sensitivity	< -23dBm	< -19dBm
Power Consumption	≤ 1.5W	≤ 1.5W
Receiver Overload	>1dBm	>-2dBm
Extinction Ratio	>9dB	>9dB

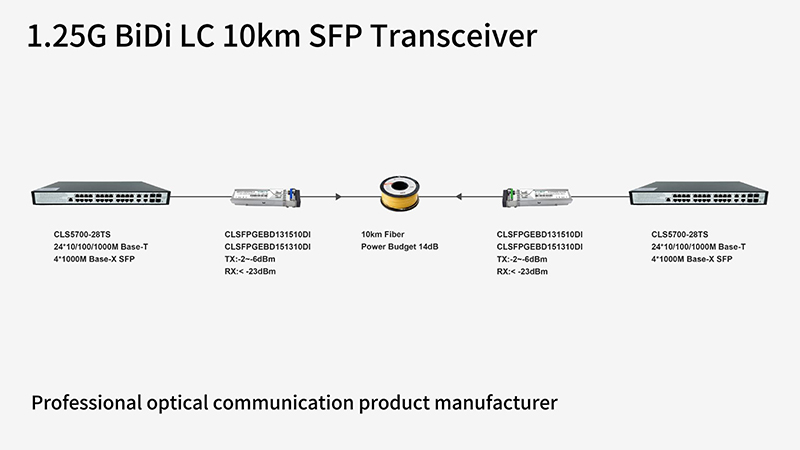

Application Graph
