10G/5G/2.5G/1G/100M multi-rate copper SFP+ transceiver with auto-negotiation, supporting distances up to 80 meters. It offers high compatibility and is ideal for efficient connectivity in data centers and enterprise networks.
-40℃~85℃ 丨 10G/5G/2.5G/1G/100M Auto Adapting丨 80m CAT6 丨RJ-45丨Factory warranty 丨SFP+ |
CLSFP10GTX3I |
●Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T / 100base-T on line side (Reach distance on CAT6>80meter @ 10Gbase-T, 100meter for rest rates) ●Support 10Gbase-R on host side ●Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab ●Support IEEE 802.3az (Energy Efficient Ethernet) ●Support IEEE 802.3bz, IEEE 802.3an ●Support IEEE Fast Retrain and CISCO Negotiated Fast Retrain ●Support TX Disable & RX_LOS ●Hot-pluggable SFP footprint ●Compact RJ-45 connector assembly ●RoHS compliant and lead-free ●Single +3.3V power supply ●10 Gigabit Ethernet over Cat6 cable ●Operating temperature: -40℃~85℃ |
Specification | |||
| Number | CLSFP10GTX3I | Vendor | C-LIGHT |
| Form Factor | SFP+ | Data Rate Max | 10Gbps |
| Media | 10G@Cat6/Cat7 5G/2.5G/1000M/100M@Cat5e or better | Max Cable Distance | 80m@Cat6/Cat7 |
| Connector | RJ-45 | Cable Type | Copper |
| Special Features | TX Disable , RX_LOS | DDM/DOM | Temp./Volt |
| Power Consumption | ≤1.8W | EMC (Electro Magnetic Compatibility) | Supported |
| Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz, IEEE 802.3an | Operating temperature | -40℃~85℃ |

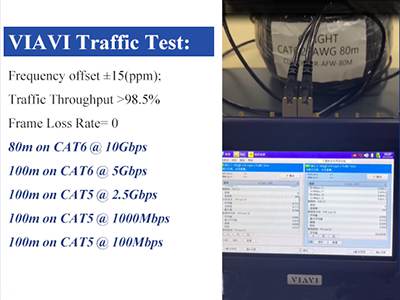

| System Test | |
|
|
| |
| Test video | ||

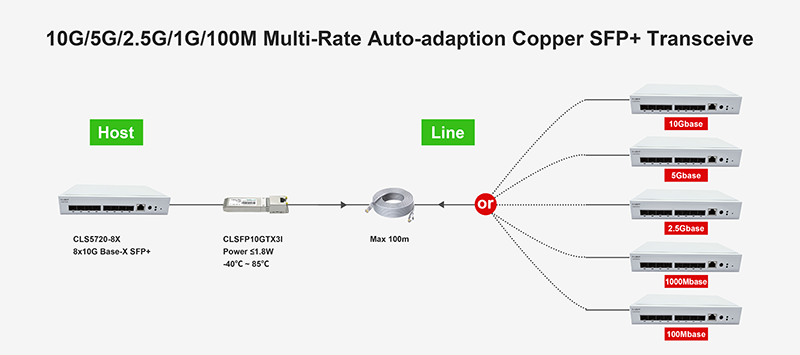

| Application Graph |
 |
>
>
>
>
>
>
>
>
