Dense wavelength division multiplexing (DWDM) and LAN wavelength division multiplexing (LWDM) both increase the capacity of optical fiber by transmitting multiple wavelength channels. However, they serve different design requirements. DWDM is widely used in optical transport systems that need high channel density, while LWDM is associated with multi-wavelength optical interfaces and O-band transmission applications.
The differences between DWDM and LWDM involve wavelength spacing, operating spectrum, channel configuration, optical component requirements, and network architecture. Understanding these distinctions helps engineers select compatible optical transceivers and multiplexing equipment for data center, enterprise, and telecommunications networks.
1. What Is DWDM?
DWDM combines multiple optical signals at closely spaced wavelengths onto a shared fiber. At the receiving end, a demultiplexer separates the channels so that each signal can be processed independently. This approach increases aggregate fiber capacity without requiring a separate fiber for every wavelength channel.
The ITU-T G.694.1 recommendation defines the DWDM frequency grid, including fixed channel spacing options and flexible-grid arrangements. Common fixed-grid spacings include 100 GHz and 50 GHz, while other supported spacings depend on the selected grid and system design.
1.1 Main Characteristics of DWDM
High channel density: Closely spaced optical channels allow many wavelengths to occupy a defined spectral range.
Scalable capacity: Operators can increase aggregate bandwidth by adding compatible channels or deploying higher-capacity optical interfaces.
Precise wavelength control: Transmitters must meet the wavelength or frequency tolerances required by the selected channel grid.
Flexible transport architecture: DWDM can be integrated with optical multiplexers, demultiplexers, amplifiers, and optical add-drop equipment.
Long-distance potential: Suitable DWDM systems can support metro, regional, and long-haul transmission, depending on the optics and line-system design.
1.2 Common DWDM Applications
DWDM is commonly deployed in metro and backbone networks, data center interconnect (DCI), enterprise transport, and other applications requiring high aggregate capacity over shared fiber infrastructure. Reach and channel count depend on the optical interface, transmission spectrum, link budget, modulation format, and any amplification or regeneration used.

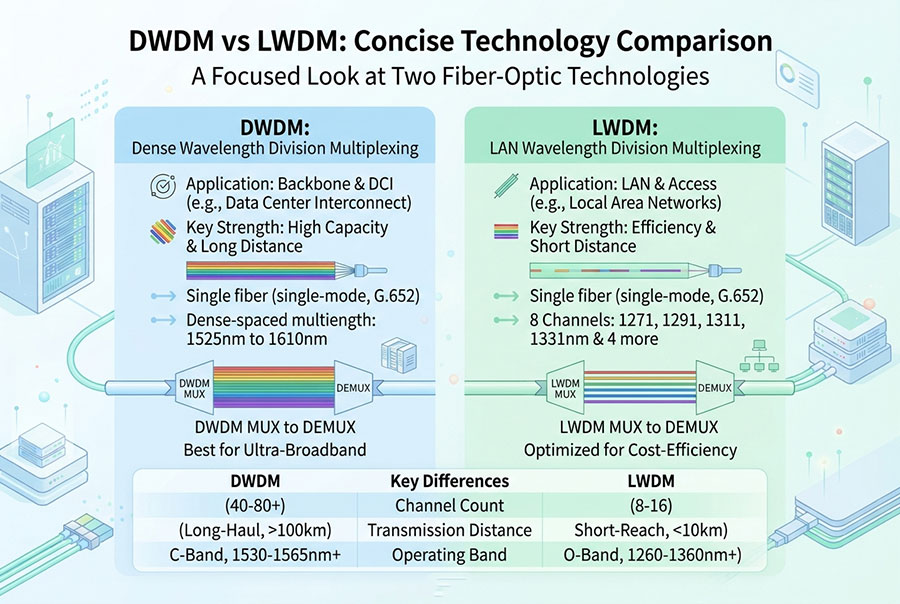

2. What Is LWDM?
LWDM stands for LAN wavelength division multiplexing. It is associated with wavelength plans used for optical data communications, particularly multi-wavelength interfaces operating in or near the O-band. Rather than relying on the dense C-band channel grids commonly found in transport DWDM systems, LWDM uses a different set of wavelength positions suited to its intended interfaces and applications.
Some LWDM implementations use a 12-wavelength plan across approximately 1269–1318 nm, with nominal wavelength spacing around 4.5 nm. Exact wavelength values and supported channel counts depend on the applicable specification and equipment design.
2.1 O-Band Operation
The O-band spans approximately 1260–1360 nm. Its low chromatic dispersion in standard single-mode fiber makes it useful for various high-speed data communication links. LWDM wavelength plans can use this region to support multiple optical channels over single-mode fiber.
2.2 LWDM and High-Speed Optical Interfaces
LWDM is relevant to multi-wavelength optical connectivity where several channels are combined into a shared optical path. The exact implementation may differ by interface, transmission rate, and standard. Engineers should verify the transceiver specification rather than assuming that all O-band or multi-wavelength modules use the same LWDM grid.

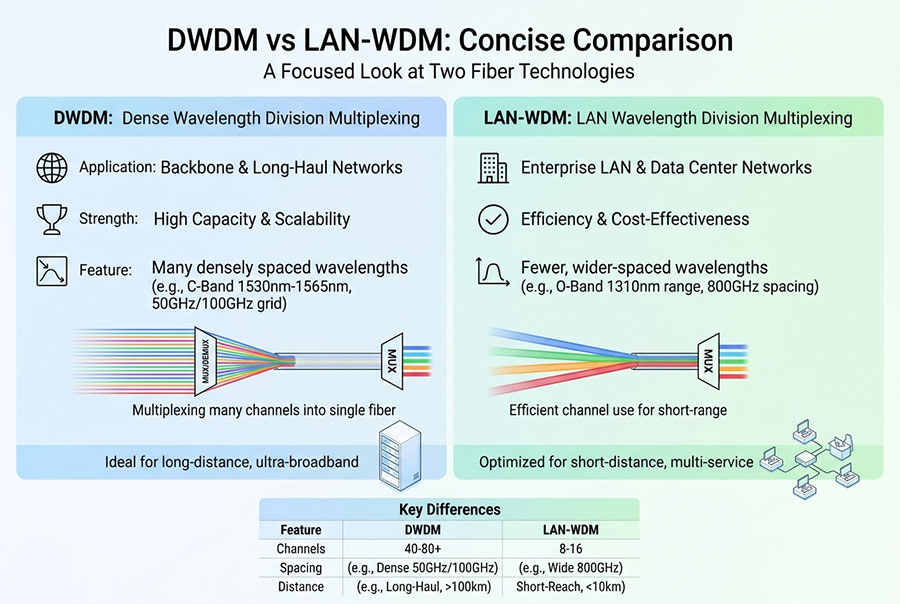

3. DWDM vs LWDM: Key Differences
| Comparison | DWDM | LWDM |
|---|---|---|
| Primary purpose | Increase aggregate capacity across optical transport systems | Support defined multi-wavelength optical interfaces and data communication links |
| Typical operating region | Commonly C-band in transport applications; L-band and other implementations are also possible | Typically associated with O-band wavelength plans |
| Channel spacing | Common fixed-grid examples include 100 GHz and 50 GHz; other grids are available | Some 12-channel plans use approximately 4.5 nm spacing |
| Channel density | Can support many channels within a defined spectrum | Depends on the specified wavelength plan and interface |
| Wavelength control | Must comply with the selected DWDM grid and system tolerances | Must comply with the relevant LWDM wavelength plan |
| Optical architecture | Often used with external MUX/DEMUX and optical line systems | May be implemented in multi-wavelength interfaces or compatible multiplexing systems |
| Typical applications | Metro transport, backbone networks, DCI, and high-capacity optical links | Selected high-speed data communication and O-band optical connectivity applications |
| Capacity expansion | May add wavelength channels, increase channel rates, or use flexible-grid systems | Depends on the supported wavelength plan, interface rate, and channel configuration |
These are general implementation patterns, not absolute limitations. DWDM can also operate in the O-band for specific applications, and LWDM deployment details vary by specification. Operating wavelength alone does not determine whether a system is compatible with a particular MUX/DEMUX.
4. Wavelength Spacing and Spectrum Utilization
Wavelength spacing determines how closely neighboring optical channels are placed within the available spectrum. Narrower spacing can accommodate more channels within a given frequency range, but it places greater demands on wavelength accuracy, filtering, and system engineering.
4.1 DWDM Channel Spacing
DWDM commonly uses standardized frequency grids such as 100 GHz and 50 GHz. A 50 GHz grid places channels more closely together than a 100 GHz grid, potentially allowing more channels within the same spectral range. The usable channel count still depends on the available spectrum, optical signal characteristics, and line-system capabilities.
4.2 LWDM Channel Spacing
Some LWDM plans use wavelength spacing of approximately 4.5 nm across the O-band. Because wavelength spacing expressed in nanometers corresponds to different frequency intervals at different center wavelengths, comparisons should use the actual specified channel frequencies when precision matters.
LWDM's channel spacing is generally wider than the spacing used in common fixed-grid C-band DWDM systems. However, the two technologies often address different applications, so channel spacing alone is not enough to determine which solution is better.
5. Optical Transceiver Design
DWDM Optical Transceivers
DWDM transceivers operate on specified optical channels and may use fixed or tunable wavelengths. Important design factors include frequency accuracy, wavelength stability, output power, receiver sensitivity, and compatibility with the optical line system.
LWDM Optical Transceivers
LWDM transceivers follow the wavelength configuration required by their intended interface. Their optical lanes, wavelength positions, transmission reach, and receiver characteristics must match the receiving equipment and any associated multiplexing components.
5.1 Fixed and Tunable Wavelengths
Fixed-wavelength DWDM modules are designed for specific channels, while tunable modules can operate on multiple supported DWDM channels. Tunability can simplify channel allocation and spare management, but it does not eliminate the need to verify compatibility with the optical line system.
LWDM modules typically follow a defined wavelength plan for the intended interface. A module's O-band operation does not automatically make it compatible with a DWDM system, since the channel center frequencies, passbands, and optical specifications may differ.
5.2 Compatibility Checks
Supported interface standard and data rate
Center wavelengths and channel spacing
Optical lane configuration and multiplexing method
Transmission distance and optical power budget
Fiber type, connectors, and insertion loss
Host equipment compatibility and diagnostic support
Compatibility with external MUX/DEMUX or optical line equipment
6. DWDM vs LWDM: Network Applications
6.1 When DWDM Is Appropriate
DWDM is suitable when a network needs to carry many optical channels over shared fiber and requires scalable aggregate capacity. Typical scenarios include metro transport, backbone connectivity, and DCI systems with a compatible optical line architecture.
When planning a DWDM deployment, engineers should evaluate the channel grid, available spectrum, transmission reach, optical loss, amplification requirements, and future capacity demand.
6.2 When LWDM Is Appropriate
LWDM is appropriate when the target optical interface or system specifically supports an LWDM wavelength plan. Its suitability depends on the required data rate, wavelength configuration, fiber link, and interoperability requirements.
For a multi-wavelength Ethernet connection, the correct module should be selected according to the specified optical interface. A generic O-band transceiver is not necessarily an equivalent replacement for an LWDM module with a defined wavelength configuration.
7. Can DWDM and LWDM Be Used Together?
DWDM and LWDM components may be incorporated into the same broader network, but direct interconnection depends on wavelength compatibility. A transceiver designed for one wavelength plan cannot automatically operate through a multiplexer designed for another.
Before combining equipment, engineers should verify center wavelengths, channel passbands, insertion loss, optical power levels, and the supported interface specifications. If the wavelength plans are incompatible, a different optical design or suitable conversion equipment may be required.
8. Frequently Asked Questions
Q1: What is the main difference between DWDM and LWDM?
DWDM commonly supports high-density wavelength channels in optical transport systems, while LWDM refers to wavelength plans used in specific optical data communication applications, often in the O-band.
Q2: Does DWDM always operate in the C-band?
No. C-band is common in transport DWDM, but DWDM systems can also use other wavelength regions, including O-band applications defined for particular networks.
Q3: What wavelength range does LWDM use?
LWDM is commonly associated with O-band wavelengths. Some 12-channel plans span approximately 1269–1318 nm, but exact channel values depend on the relevant specification.
Q4: Which technology has narrower channel spacing?
Common DWDM grids use 100 GHz or 50 GHz spacing, while some LWDM plans use approximately 4.5 nm spacing. The exact comparison depends on the selected grids and center wavelengths.
Q5: Can an LWDM transceiver connect to a DWDM MUX?
Not automatically. The transceiver's center wavelength and passband must match the multiplexer channel, and the link must satisfy the required optical budget.
Q6: Which technology supports more optical channels?
DWDM transport systems can support many channels across a defined optical spectrum. LWDM channel count depends on the selected wavelength plan and interface specification.
Q7: Is LWDM suitable for long-distance transmission?
Reach depends on the specific LWDM interface, transmitter and receiver performance, fiber characteristics, and link budget. It should be evaluated against the requirements of the intended application.
Q8: How should I choose between DWDM and LWDM?
Start with the required interface standard, wavelength plan, channel count, distance, and optical budget. DWDM is commonly selected for scalable transport capacity, while LWDM is appropriate when the intended interface specifies that wavelength plan.
Conclusion
DWDM and LWDM both use wavelength division multiplexing, but they are associated with different wavelength plans and network requirements. DWDM is widely used to scale optical transport capacity through densely spaced channels, while LWDM is associated with O-band multi-wavelength connectivity in specific data communication applications.
The right choice depends on the target interface, wavelength configuration, transmission distance, optical budget, and overall system design. Checking the applicable specifications before deployment helps ensure compatibility between optical transceivers, multiplexers, and network equipment.
