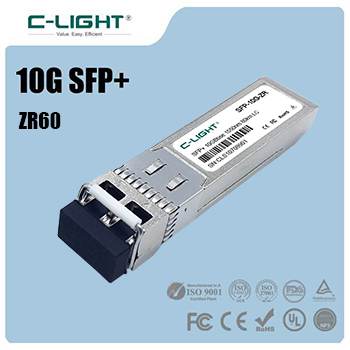

10Gbps 60KM SFP+ Transceiver is a high-performance, hot-pluggable optical module designed for long-range, high-bandwidth data transmission. It supports data rates up to 10.3125 Gbps and achieves a link length of up to 60 kilometers over standard single-mode fiber (SMF)
10G 1550nm 丨 60KM Duplex LC 丨Factory warranty 丨 SFP+ |
CLSFP1550GZR |
●60km with 9/125µm SMF ●1550nm EML laser ●APD receiver ●Duplex LC Connector ●Hot-pluggable SFP+ footprint ●Single 3. 3V power supply ●Operating temperature: 0℃ to 70℃ ●RoHS ●Digital Diagnostic Monitor compatible ●Power Consumption < 0.8W |
●Up to 10Gbps data linksSpecification | |||
Part Number | CLSFP1550GZR | Vendor | C-LIGHT |
Form Factor | SFP+ | Data Rate | 10Gbps |
Wavelength | 1550nm | Distance | 60km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | EML | Receiver Type | APD |
TX Power | 0~5dBm | Receiver Sensitivity | < -25dBm |
Power Budget | 25dB | Receiver Overload | ＞-7dBm |
Typical Power Consumption | ≤1.5W | Extinction Ratio | >8.2dB |

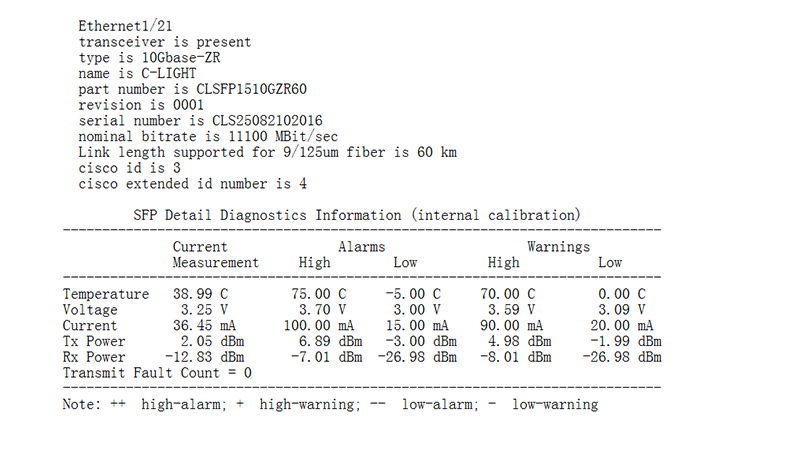

DDM/DOM | Supported | Ind.Temperature Range | 0 to 70°C |
Protocols | SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 3 Years |
| Specification | |
 |  |
| |

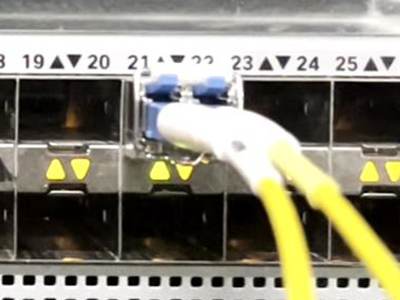

Test video | ||||
Related Products | ||
| Part Number | CLSFP1550GZR | CLSFP1310GLR |
| Center Wavelength | 1550nm | 1310nm |
| Connector | Duplex LC | Duplex LC |
| Cable Distance (Max.) | 60km | 10km |
| Modulation | EML | DFB |
| Power Consumption | SMF | SMF |
| TX Power | 0~5dBm | -4~-1dBm |
| Receiver Sensitivity | < -25dBm | < -14dBm |
| Receiver Overloa | >-7dBm | >0.5dBm |
| Extinction Ratio | >8.2dB | >3.5dB |

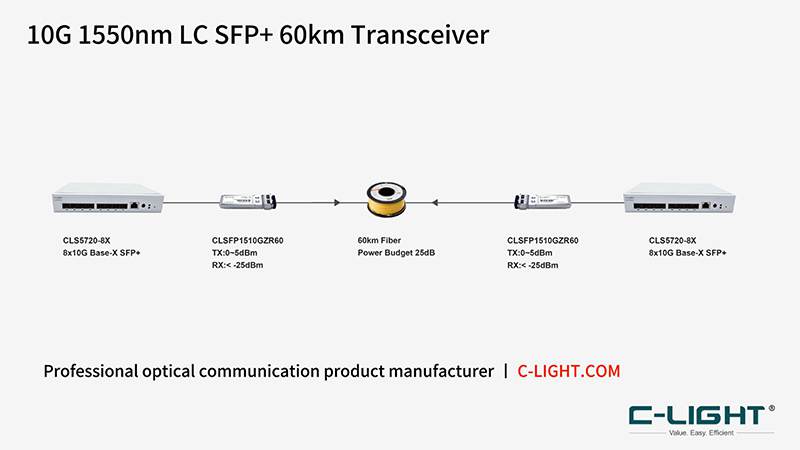

Application Graph |
